2 U Gan digital power amplifier from China manufacturer - Guangdong Cohen Electronic Technology Co.,Ltd.

Product Category

	2 channels			4 channels
Model No.	DG210	DG213	DG215	DG410	DG413	DG415
8Ω Stereo Output Power	1000W	1300W	1500W	1000W	1300W	1500W
4Ω Stereo Output Power	1800W	2350W	2700W	1800W	2350W	2700W
** 2Ω Stereo Output Power	2520W	3300W	3750W	2520W	3300W	3750W
8Ω Bridge watts	3600W	4700W	5400W	3600W	4700W	5400W
** 4Ω Bridge watts	5000W	6600W	7500W	5000W	6600W	7500W
Output Circuit	D
Height	2U
Frequency response	5Hz-20kHz,+0/-1dB
THD+N	<0.05%,20Hz-20kHz
Slew Ratio	20 V/µs
Damping factor	>500 (10Hz-400Hz, 8ohm)
S/N Ratio	>110dB
Input impedance	20KQ(Balance)/10KQ2(Unbalance)
Gain selection	20dB/23dB/26dB/29dB/32dB/35dB/38DB/41dB
Input connector	XLR
Output connector	Speakon

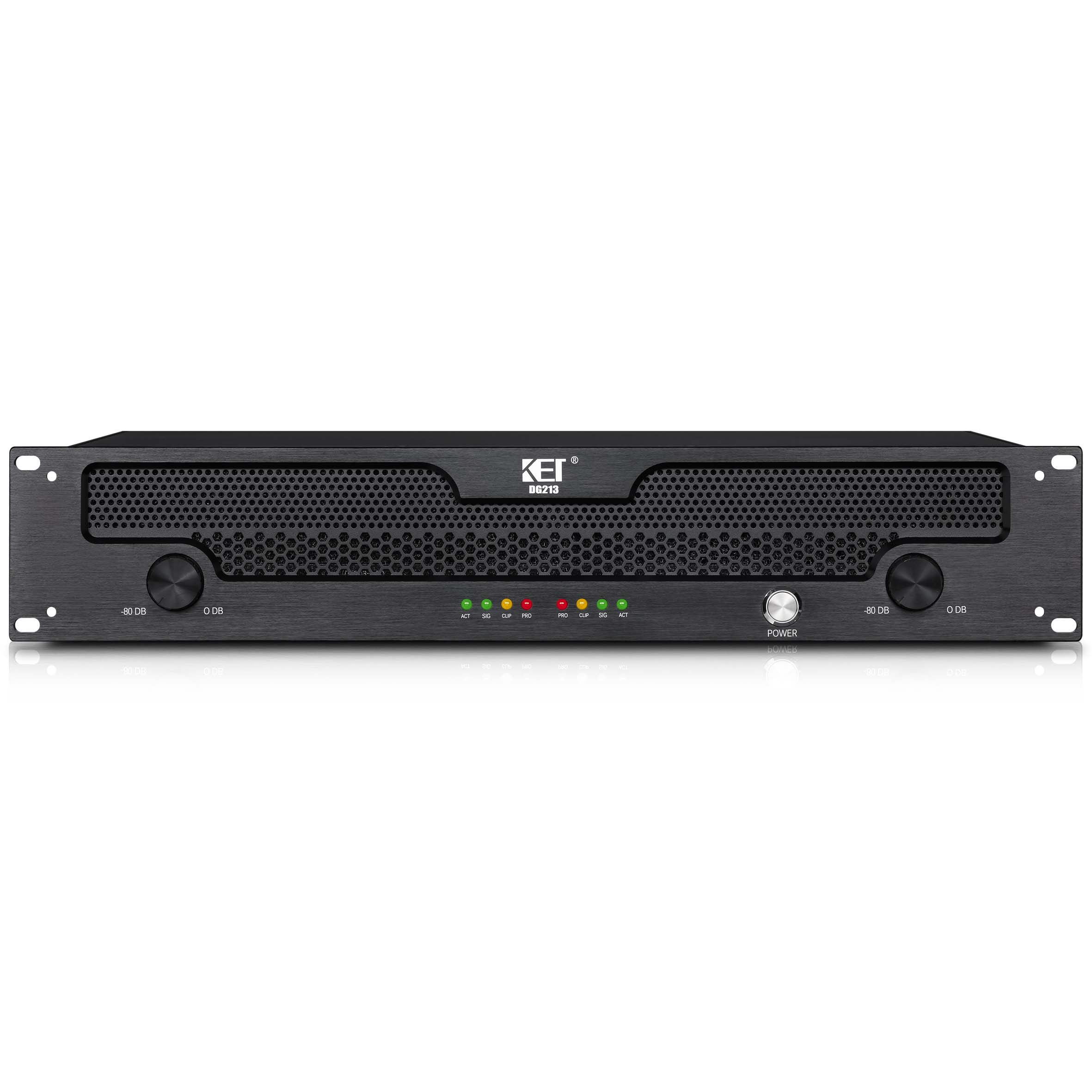

Front panel control	AC Power Switch, LED( ACT / SIG / CLIP / PRO ), 2 channels volume

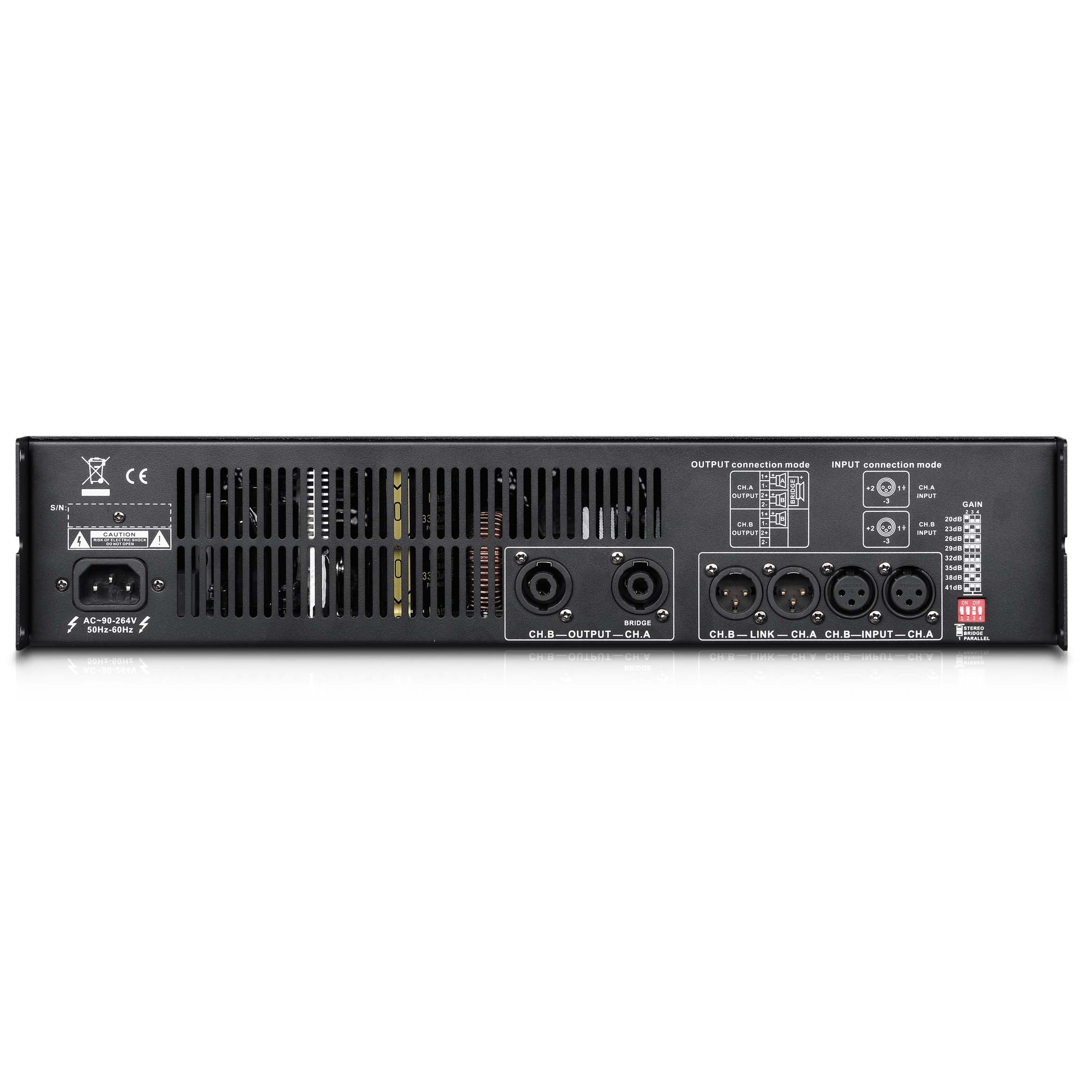

Rear panel control	Input Mode Switch: STEREO / BRIDGE / PARALLEL / GAIN
Dimension	483mmx90mmx320mm
