1.The use of class TD output circuit enable the efficient Class D amplifier to retain the pure sound quality as class A/B amplifier.
2.Under any conditions of voltage instability, R.SMPS improves the stability of the output power.
3.The precise design of the circuit enable this amplifier be equipped with higher power and more channels.
4.Be equipped with VPL adjustable output voltage to suitable for any system.
5.Perfect circuit protection design: over current protection, output DC protection,VHF protection, short circuit protection and main power fuse protection etc.
6.Cost-effective price, highly reliability and unique high-grade design appearance are favored by the majority of customers.

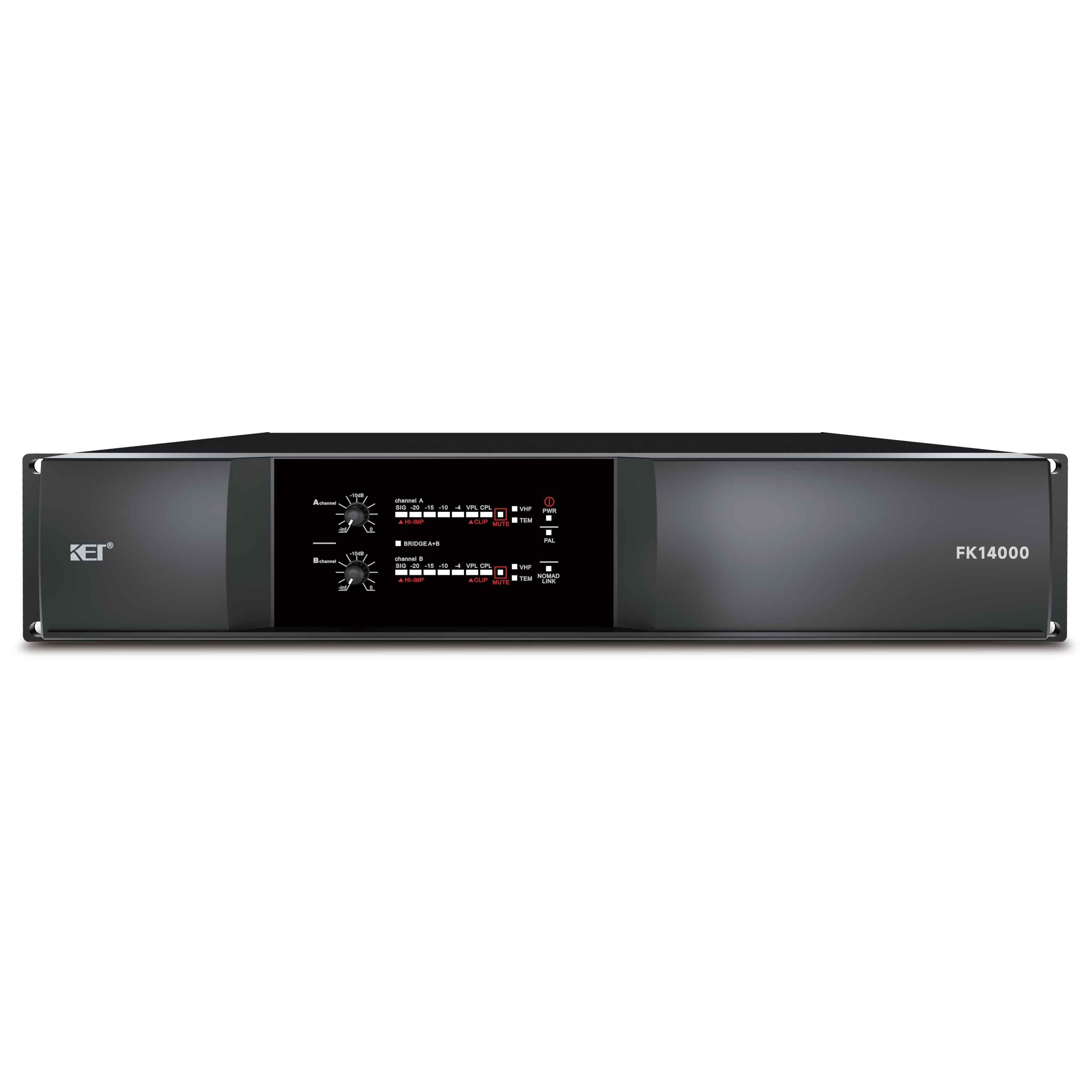

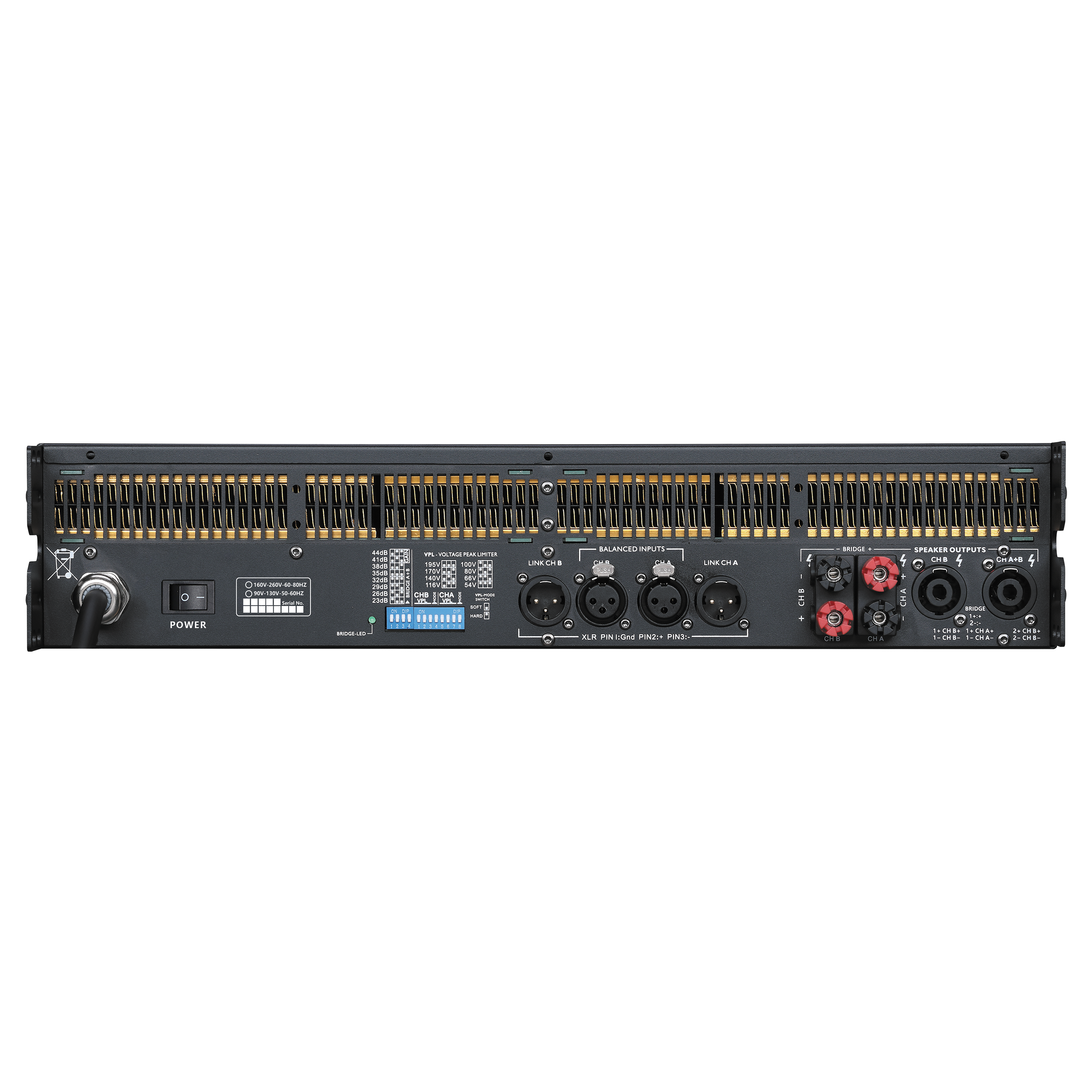

| MODEL NO. | FK14000 |
| 8Ω Stereo Output Power | 2350W |
4Ω Stereo Output Power | 4400W |
8Ω Bridged watts | 7000W |
Output Circuit | TD |
Height | 2U |
Power Requirement | 220V~50Hz |
Frequency response | 6.8Hz-34KHz |
THD 20 Hz - 20 kHz for 1 W | <0.1% |
THD at 1 kHz | <0.05% |
S/N Ratio | >112dBA |
Damping factor | ≥2000 |
Crosstalk | >70 dB |
Input sensitivity | 23, 26,29,32,35,38,41,44dB |
Input impedance | 20KQ(Balance)/10KQ2(Unbalance) |
Input connector | 3-pin XLR, electronically balanced |
Output connector | Speakon Connectors (NEUTRIK) |
Cooling | Variable Speed Fans,Front-To-Rear Airflow |
Dimension | 483mm X 410mm X 91mm |
