MODEL NO. | DP220 | DP222 | DP225 |
8Ω Stereo Output Power | 2000W | 2200W | 2500W |
4Ω Stereo Output Power | 3300W | 3600W | 4100W |
8Ω Bridged watts | 5900W | 6500W | 7400W |
Output Circuit | D | D | D |
Height | 1U | ||
Frequency response | 20Hz-20KHz±1dB | ||
THD+N | <0.1% | ||
Slew Ratio | >20V/μs | ||
Sound Insulation(1KHz) | >250 | ||
Dynamic Range | ≥95dB | ||
S/N Ratio | ≥95dB | ||
Input sensitivity | 2Vrms | ||
Input impedance | 20KΩ(Balance)/10KΩ(Unbalance) | ||
Input connector | XLR | ||
Output connector | Speakon | ||

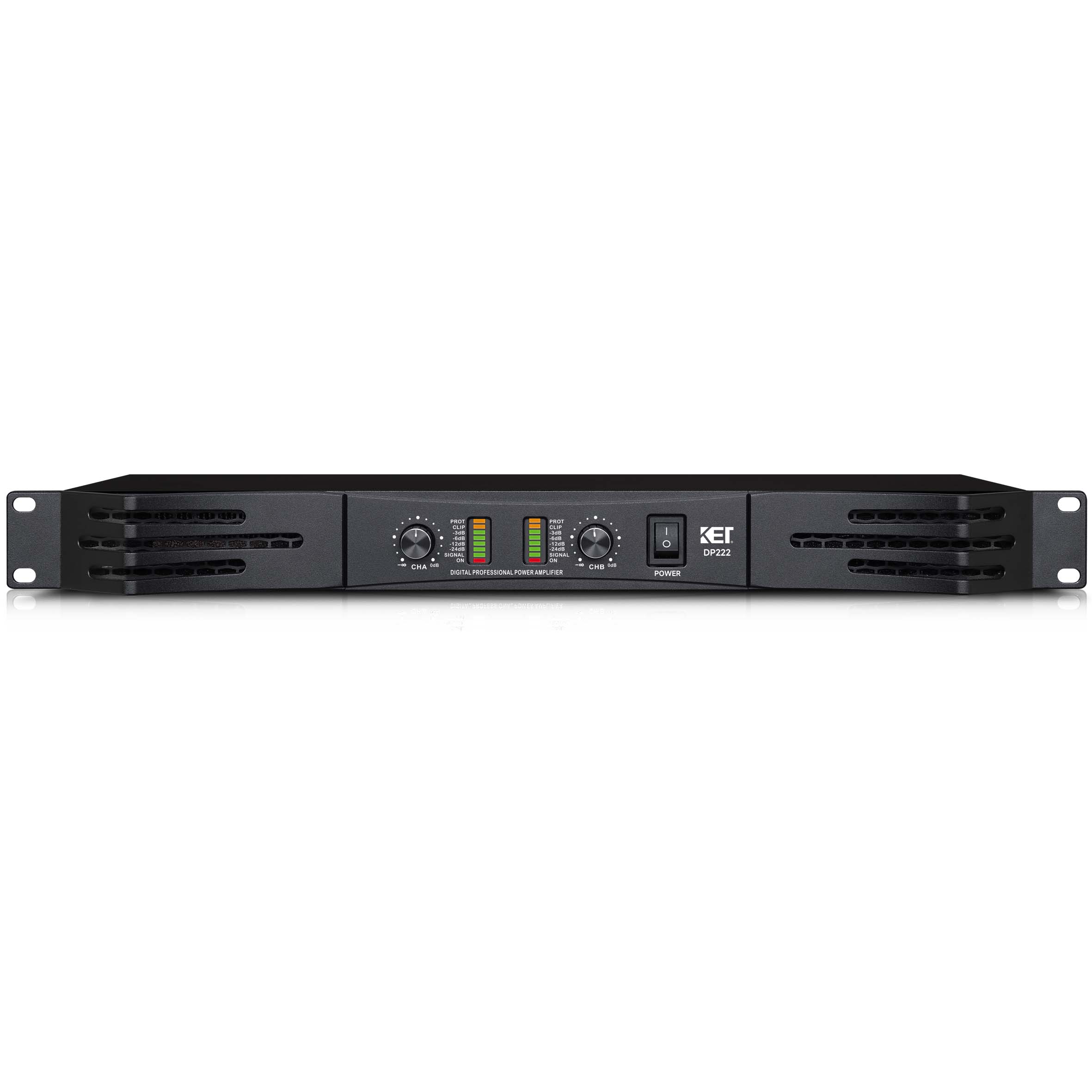

Front panel control | AC Power Switch, LED(Power,Signal, Pro/Clip),2 channels volume | ||

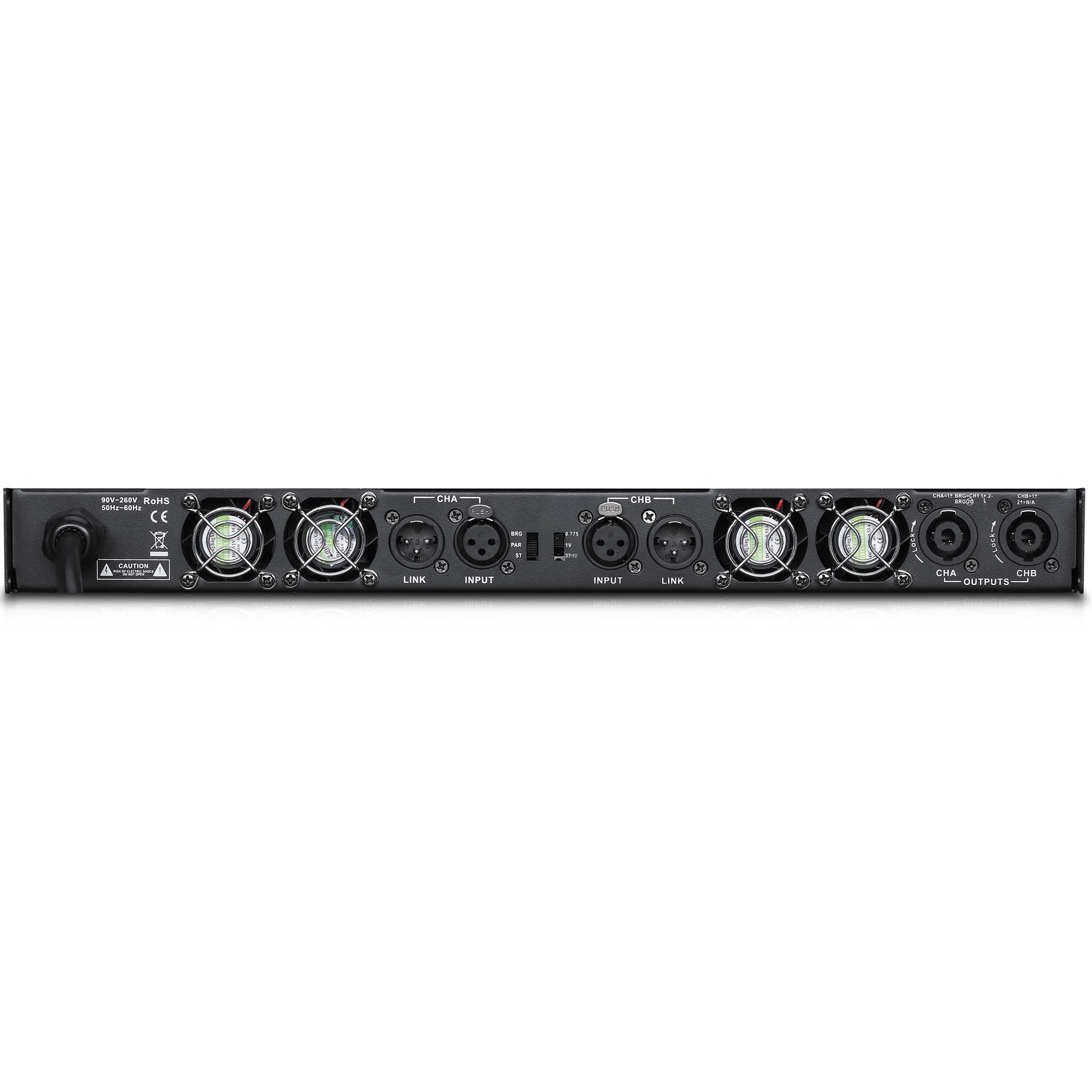

Rear panel control | Input Mode Switch: Stereo/Parallel/Bridge, Sensitivity | ||
Cooling | Variable Speed Fans,Front-To-Rear Airflow | ||
