1. High power to drive the speakers easily.
2. Maintaining high fidelity sound quality at any output level.
3. Large area vent on front panel, high speed fans and built-in longer and thicker heat dissipation aluminum which is 20% stronger than the ordinary aluminum, effectively and quickly reduce the temperature of the device.
4. Magnetic core high frequency transformer has strong and stable power.
5. Intelligent short circuit protection effectively prevent the switching power supply damage.Stable and high-quality filter power supply has excellent charge and discharge speed.Double copper inductor, plays the role of automatic adjustment, safety protection, and conversion circuit etc.
6. With cost-effective, highly reliable and unique high-grade design appearance is favored by the majority of customers.
| MODEL NO. | DP408 | DP410 | DP412 | |
| 8Ω Stereo Output Power | 800W | 1000W | 1200W | |
4Ω Stereo Output Power | 1300W | 1650W | 1950W | |
Bridged watts | 2300W | 2900W | 3500W | |
Output Circuit | D | D | D | |
Height | 1U | |||
Frequency response | 20Hz-20KHz±1dB | |||
THD+N | <0.1% | |||
Slew Ratio | >20V/μs | |||
Sound Insulation(1KHz) | >250 | |||
Dynamic Range | ≥95dB | |||
S/N Ratio | ≥95dB | |||
Input sensitivity | 2Vrms | |||
Input impedance | 20KQ(Balance)/10KQ2(Unbalance) | |||
Input connector | XLR | |||
Output connector | Speakon | |||

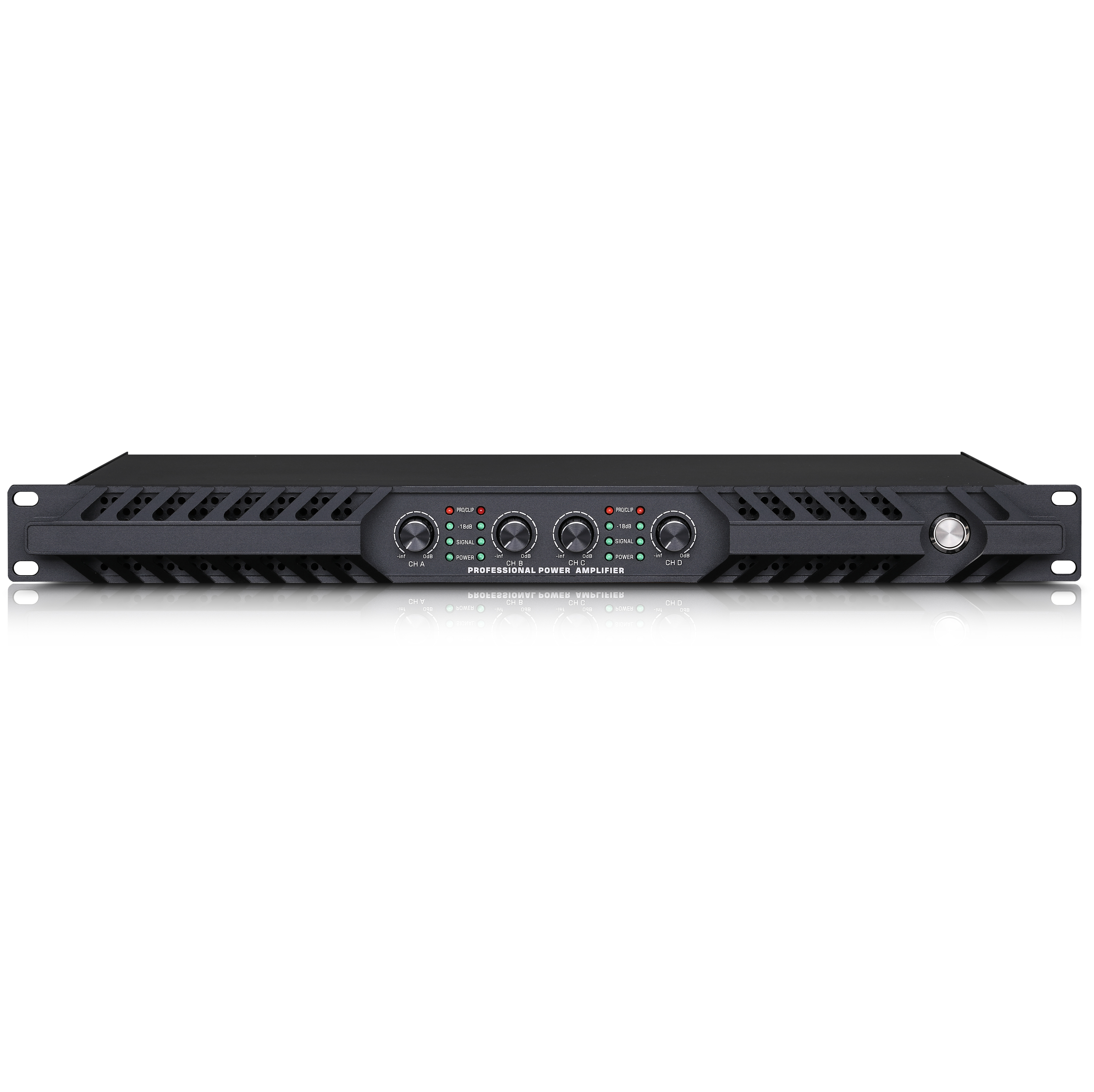

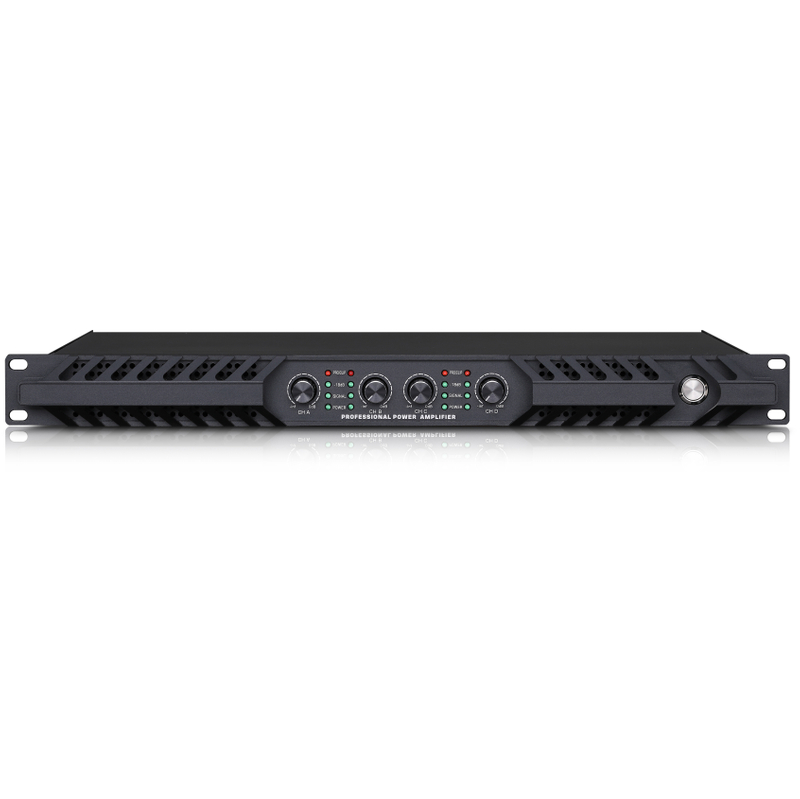

Front panel control | AC Power Switch, LED(Power,Signal, Pro/Clip),4 channels volume | |||

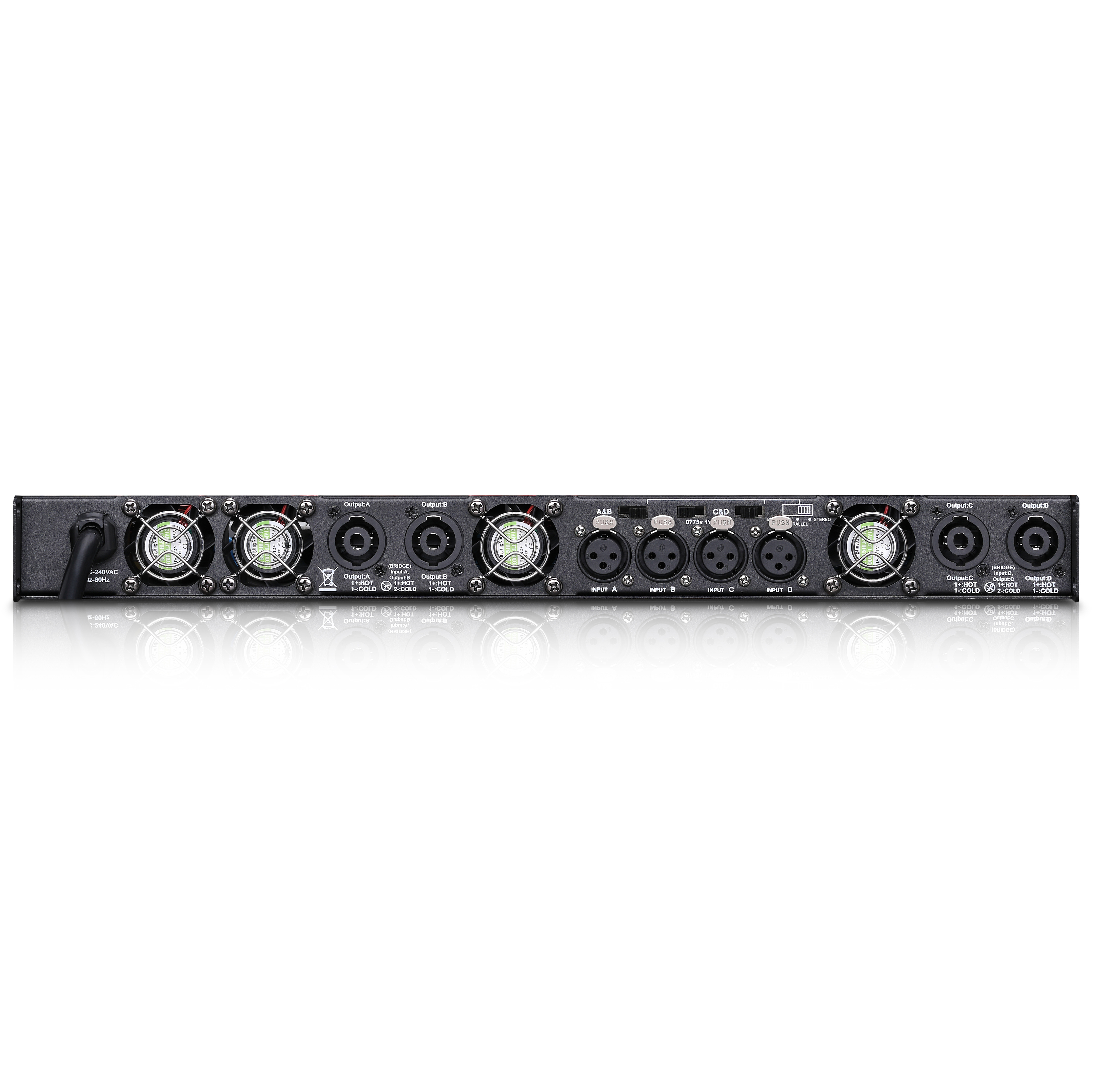

Rear panel control | Input Mode Switch: Stereo/Parallel/Bridge, Sensitivity | |||
Cooling | Variable Speed Fans,Front-To-Rear Airflow | |||
Dimension | 485mm X 320mm X 45mm | |||
Net weight | 6.55 KG | 6.65 KG | 6.75 KG | |
Gross weight | 7.45 KG | 7.55 KG | 7.65 KG | |
Packing dimension | 540mm X 450mm X 110mm | |||
