1.K4 series tradition power amplifier have excellent continuous output capacity and provide us traditional excellent sound quality.
2. 4 channels 2U high-performance and multi-function design.
3. Perfect circuit protection design: power-on buffer, overheating protection, short circuit protection, pressure limit protection, over current protection, over load protection, output DC protection.
4. With cost-effective, highly reliable and unique high-grade design appearance is favored by the majority of customers.
5. Applications for indoor and outdoor: Entertainment or multimedia.
| MODEL NO. | K4400 | K4600 | K4800 |
| 8Ω Stereo Output Power | 400W | 600W | 800W |
4Ω Stereo Output Power | 700W | 1000W | 1200W |
8Ω Bridged watts | 1200W | 1800W | 2400W |
Output Circuit | AB | H | H |
Height | 2U | ||
Frequency response | 20Hz-20KHz+0/-0.3dB | ||
THD+N | |||
S/N Ratio | >105dB | ||
Slew Ratio | 40v/us | ||
Damping factor | >400 | ||
Crosstalk | >70dB@8Q 1KHz | ||
Input sensitivity | 0.775V/1.0V/1.44V | ||
Input impedance | 20KOhm(Balance)/10KOhm(Unbalance) | ||
Input connector | Male XLR,Female XLR | ||
Output connector | Binding posts, Speakon | ||

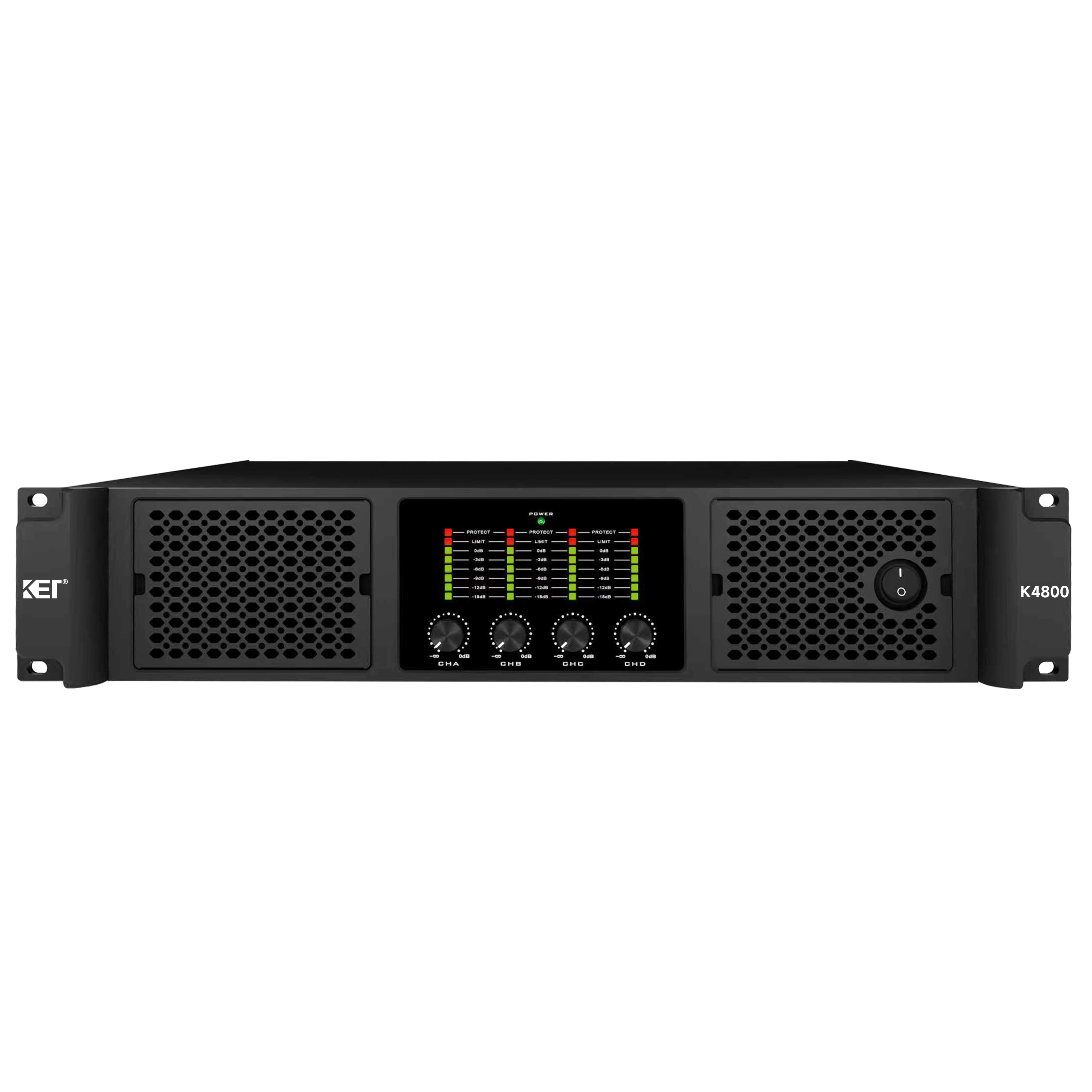

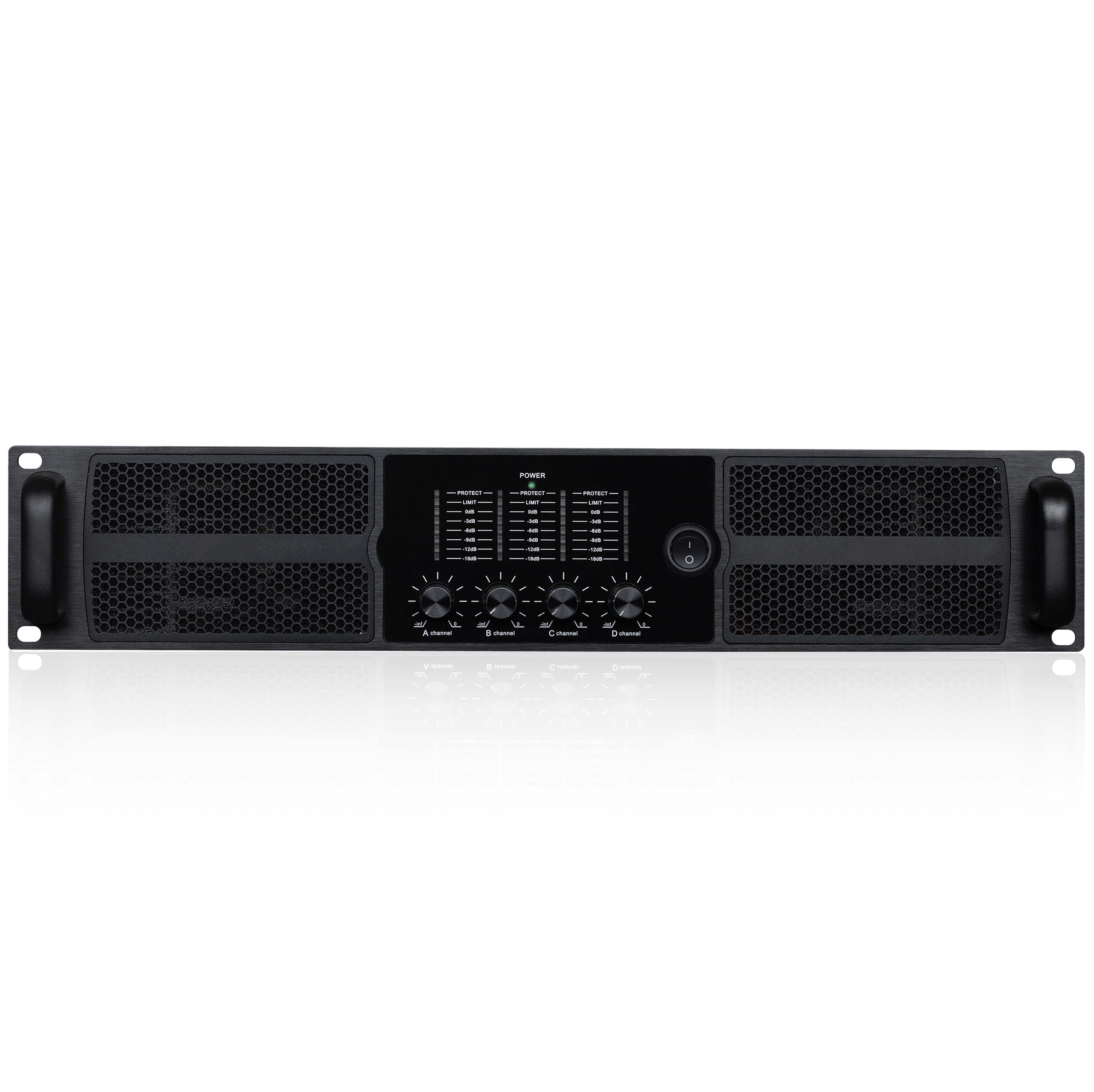

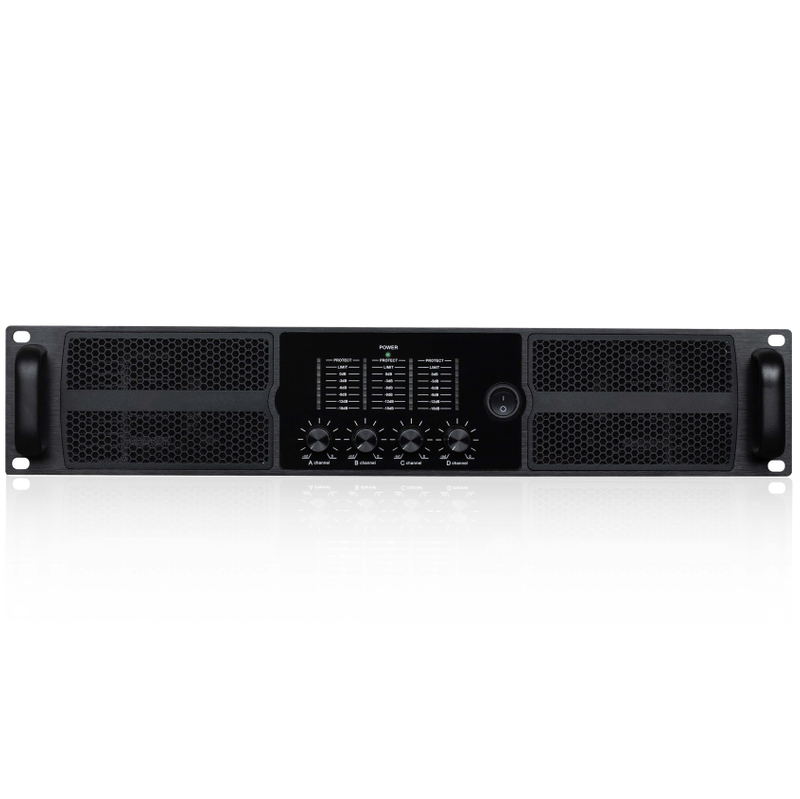

Front panel control | AC Power Switch, LED(Power,Protect,Limit ,Signal),4 channels volume | ||

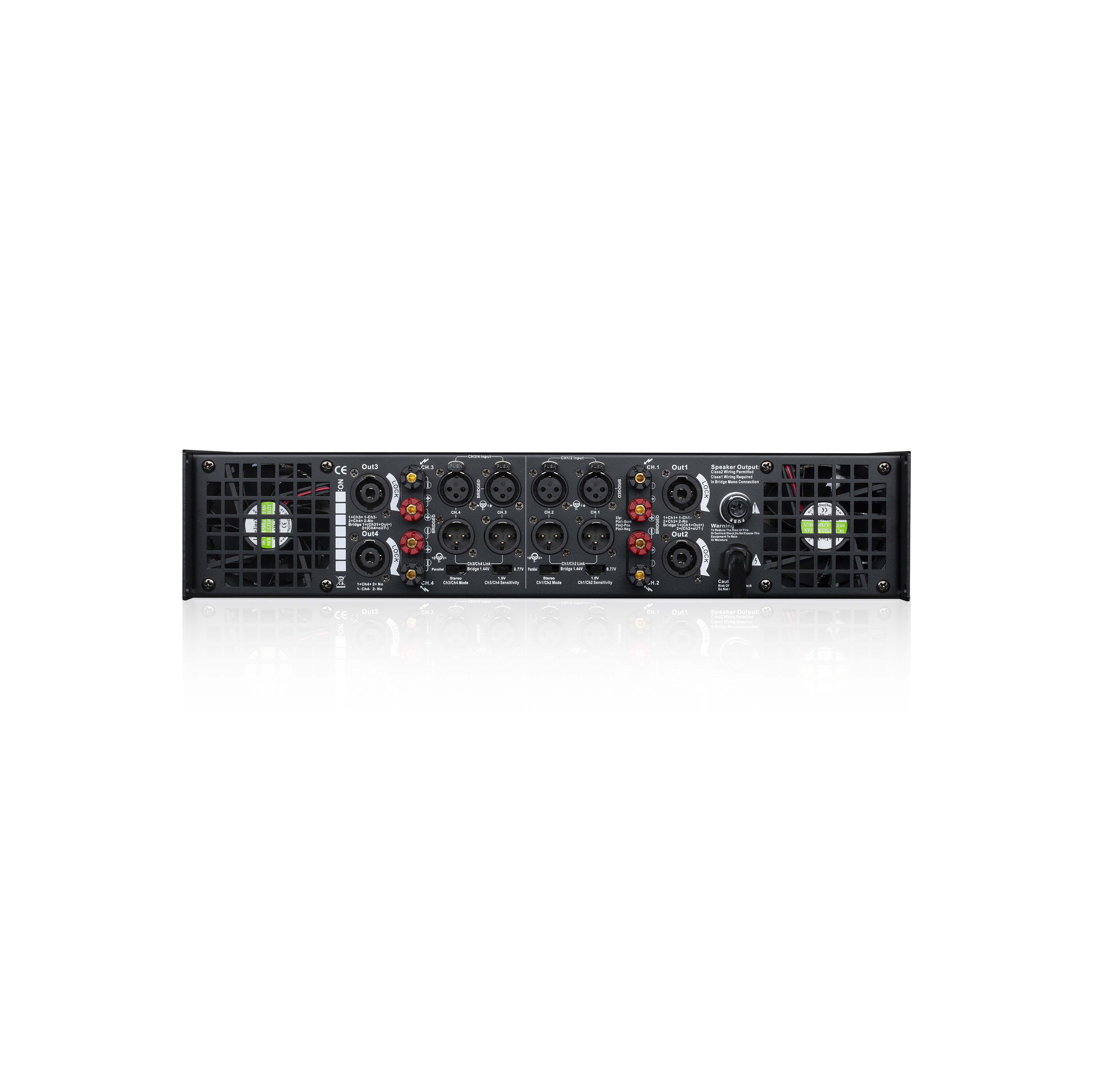

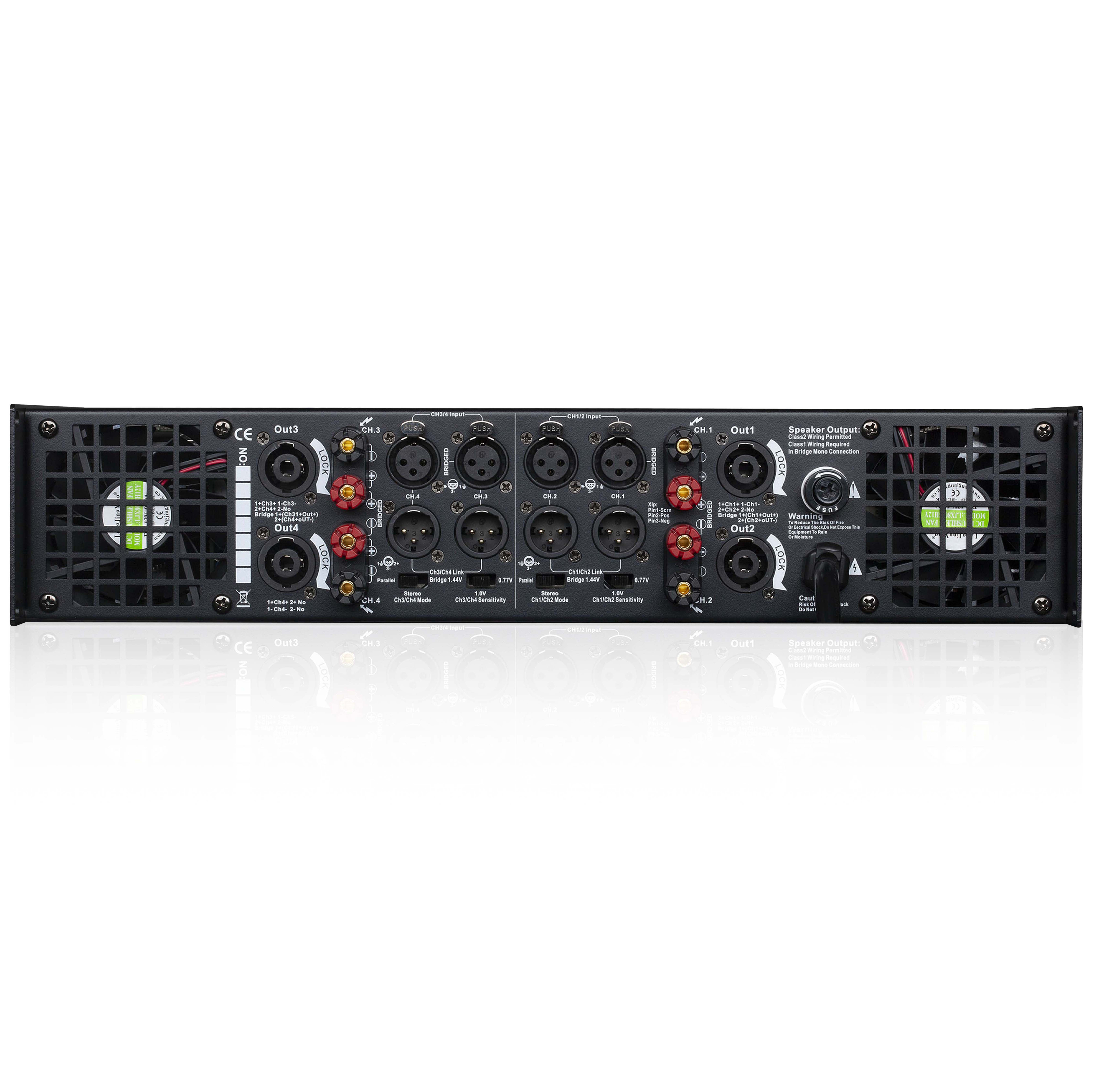

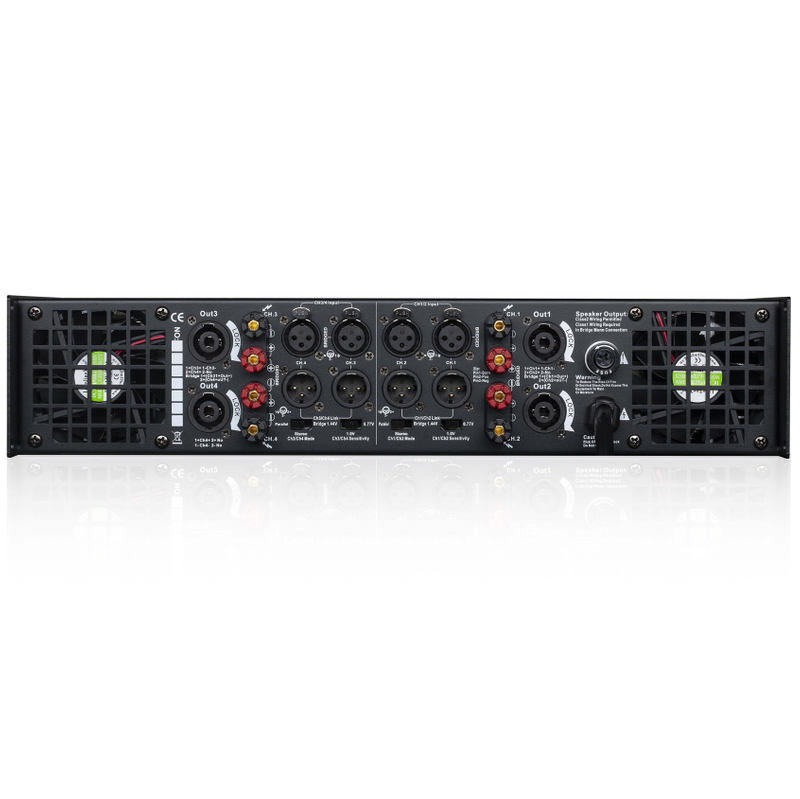

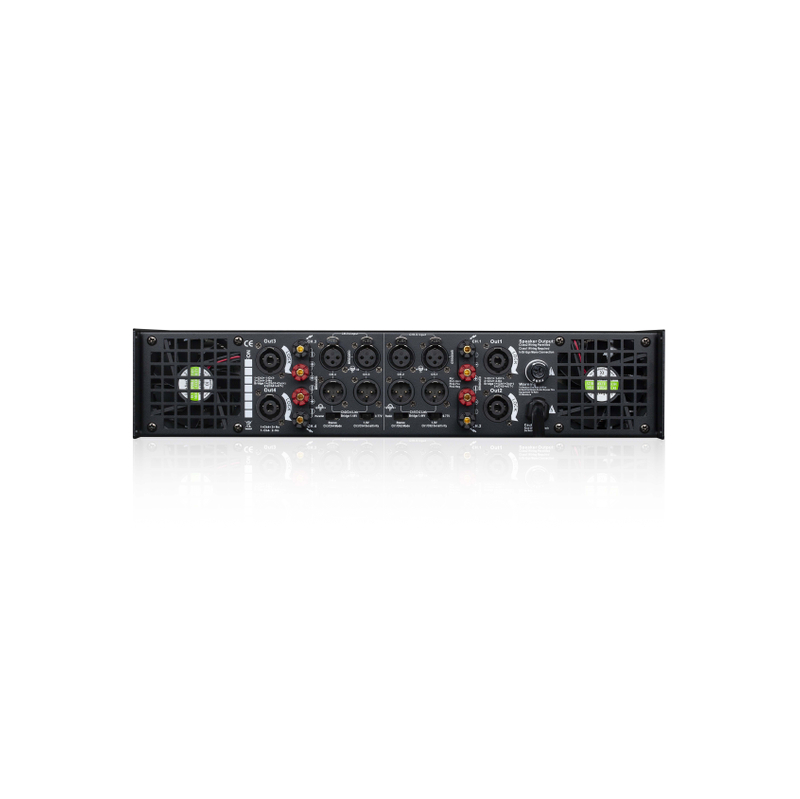

Rear panel control | Input Mode Switch: Stereo/Parallel/Bridge, Sensitivity | ||
Cooling | Variable Speed Fans,Front-To-Rear Airflow | ||
Dimension | 525mm * 480mm * 90mm | ||
Net weight | 23.45 | 23.95 | 24.45 kg |
Gross weight | 26.45 | 26.95 | 27.40 kg |
Packing dimension | 590mm * 560mm * 145mm | ||
