1. The most advanced class H circuit technology makes the output current more stronger and output more powerful.
2. Audio-specific ultra large pure copper high-quality toroidal transformer and ultra large capacity filter capacitor provide more than twice rated power and excellent charge and discharge speed.
3. Perfect circuit protection design: power-on buffer, overheating protection, short circuit protection, pressure limit protection, over current protection, over load protection, output DC protection.
4. With cost-effective, highly reliable，strong power and unique appearance design is favored by the majority of customers.
5. Applications for indoor and outdoor: KTV, Entertainment club, Stadium, Conference room etc.
| MODEL NO. | KA1500B |
| 8Ω Stereo Output Power | 2×1300W |
4Ω Stereo Output Power | 2×1950W |
8Ω Bridged watts | 3900W |
Output Circuit | H |
Height | 3U |
Frequency response | +/-0.1dB 20Hz~20KHz |
THD+N | ≤0.01% Rated Power@8Ω 1KHz |
S/N Ratio | 120dB |
Slew Ratio | 80v/us |
Damping factor | 620:1 |
Crosstalk | < -70dB |
Input sensitivity | 0.775V/1.0V/1.5V |
Input impedance | 20KOhm(Balance)/10KOhm(Unbalance) |
Input connector | Male XLR,Female XLR |
Output connector | Binding Posts，Speakon |

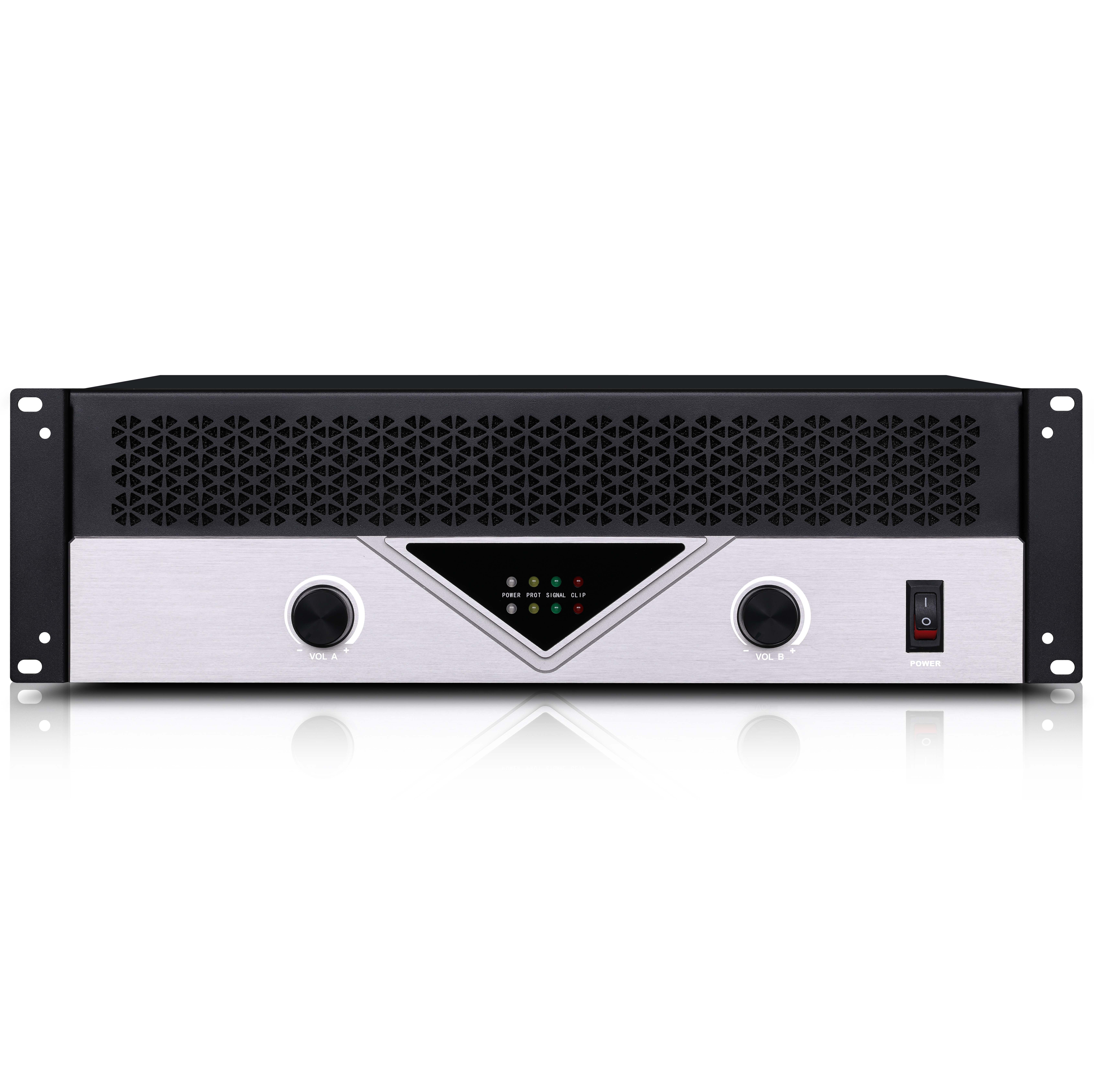

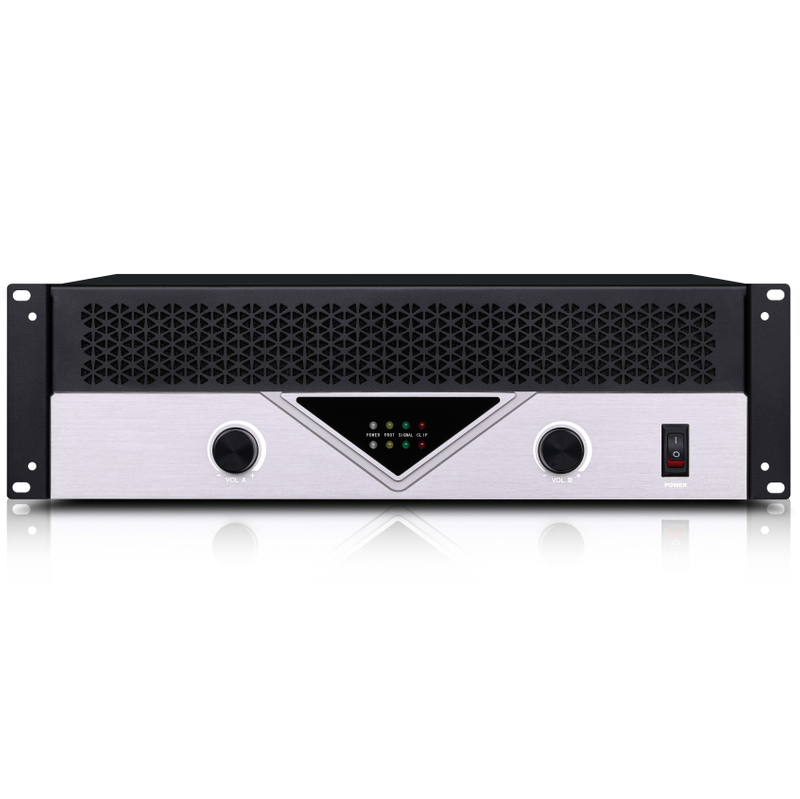

Front panel control | AC Power Switch, LED(Power, Protect,Signal, Clip),2 Channels Volume |

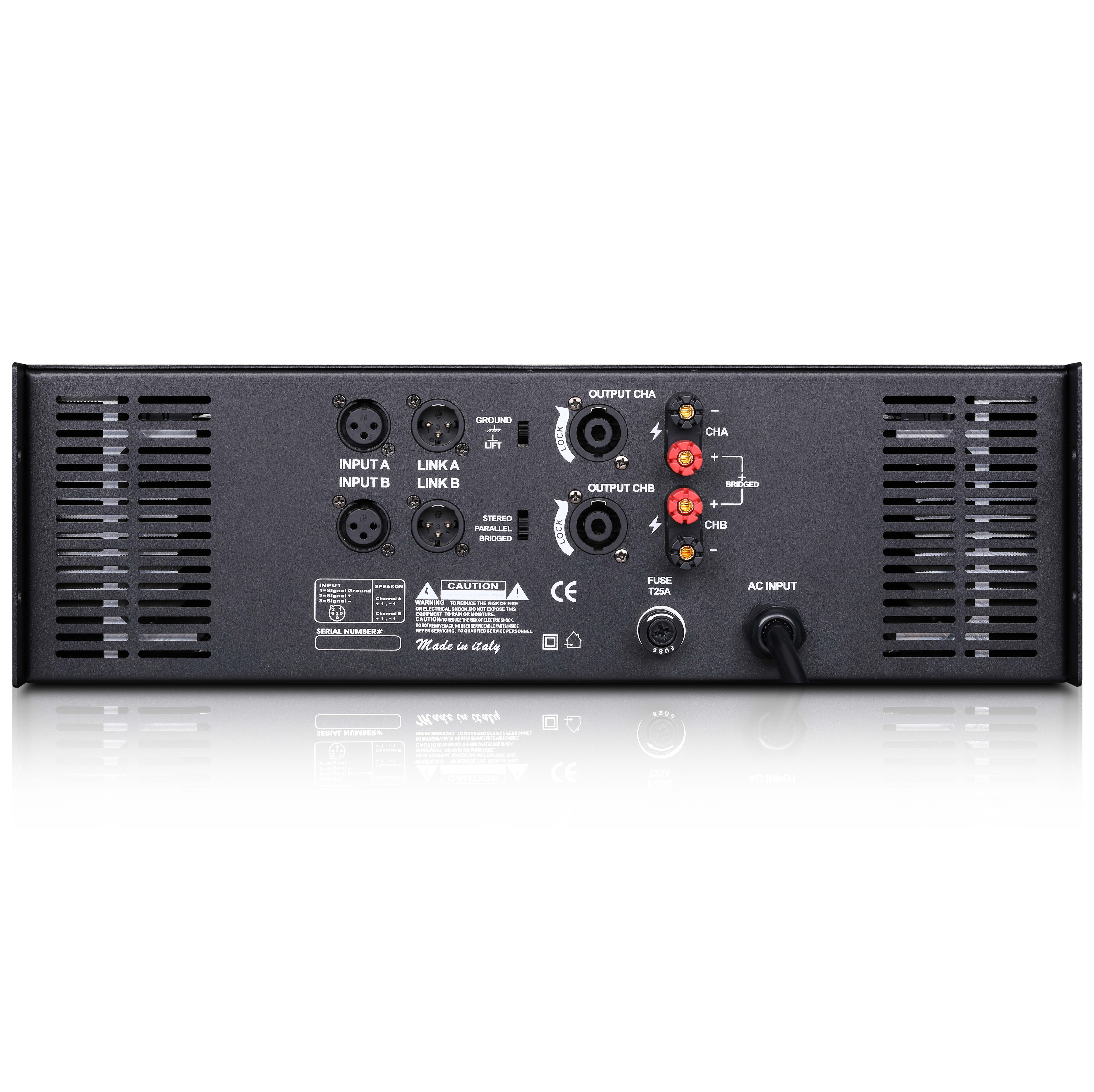

Rear panel control | Input Mode Switch: Stereo/Parallel/Bridge, Ground/Lift |
Cooling | Variable Speed Fans,Front-To-Rear Airflow |
Dimension | 555mm * 480mm * 135mm |
Net weight | 36.40 kg |
Gross weight | 39.10 kg |
Packing dimension | 595mm * 550mm * 195mm |
