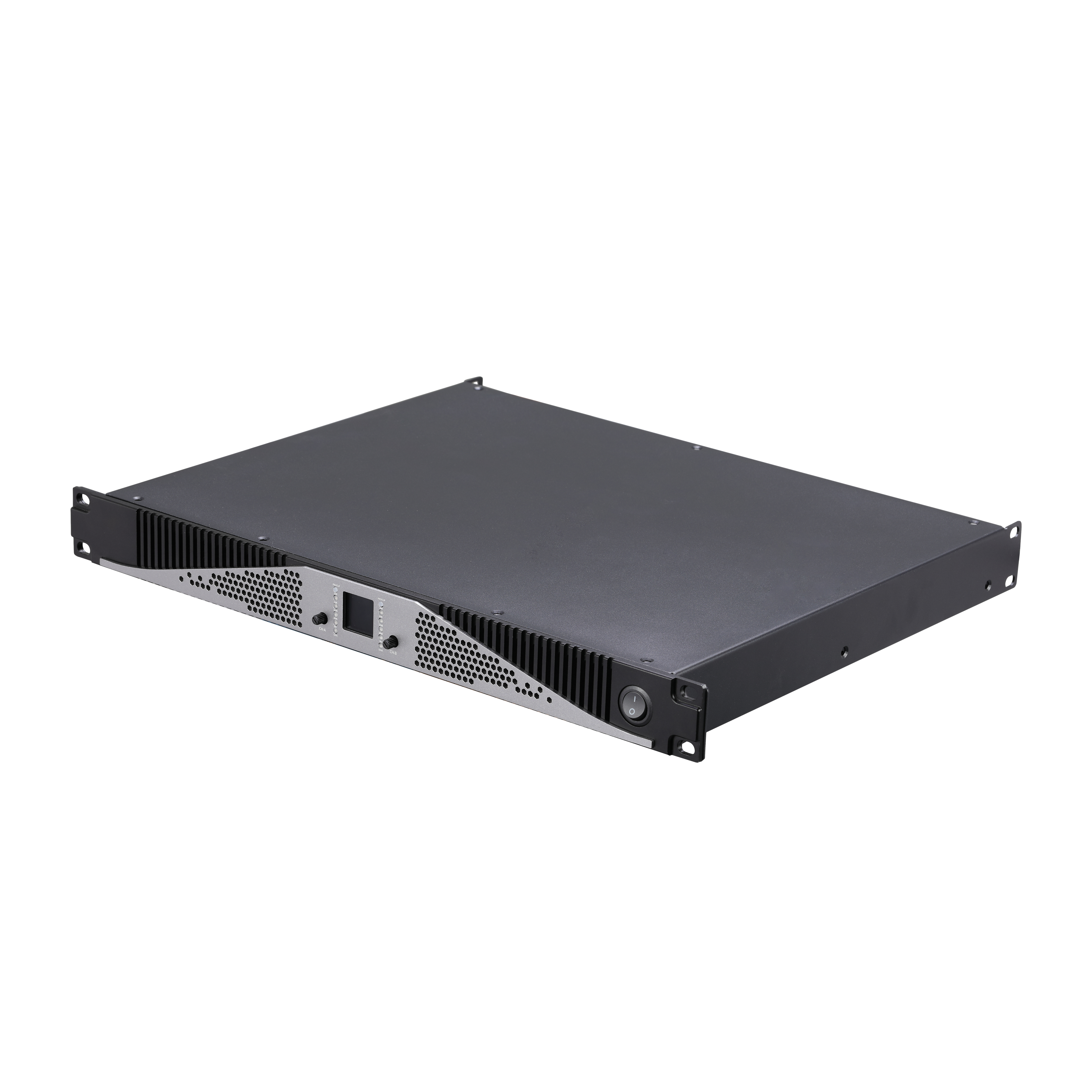

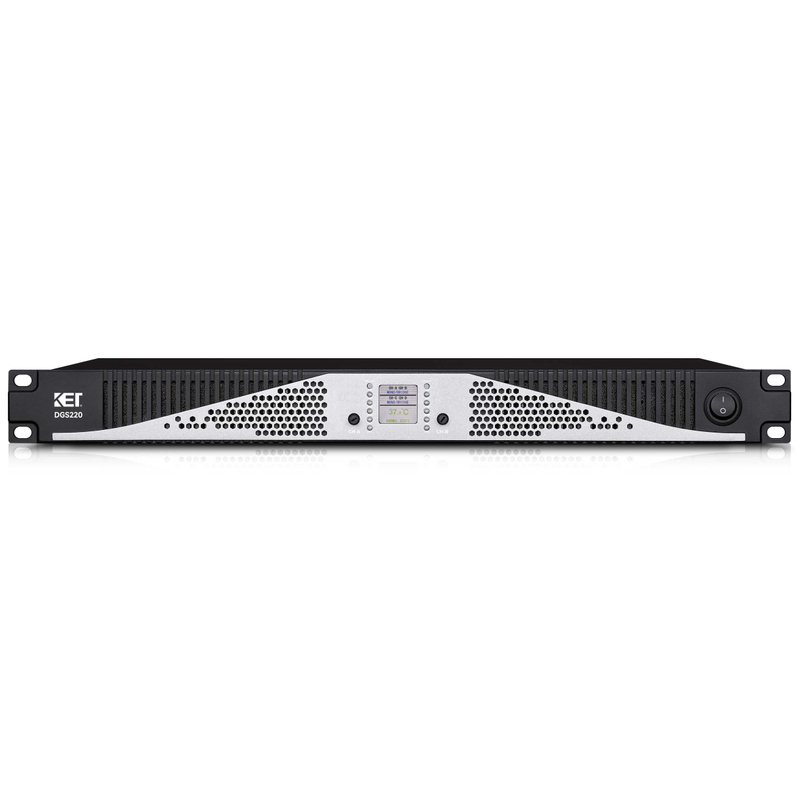

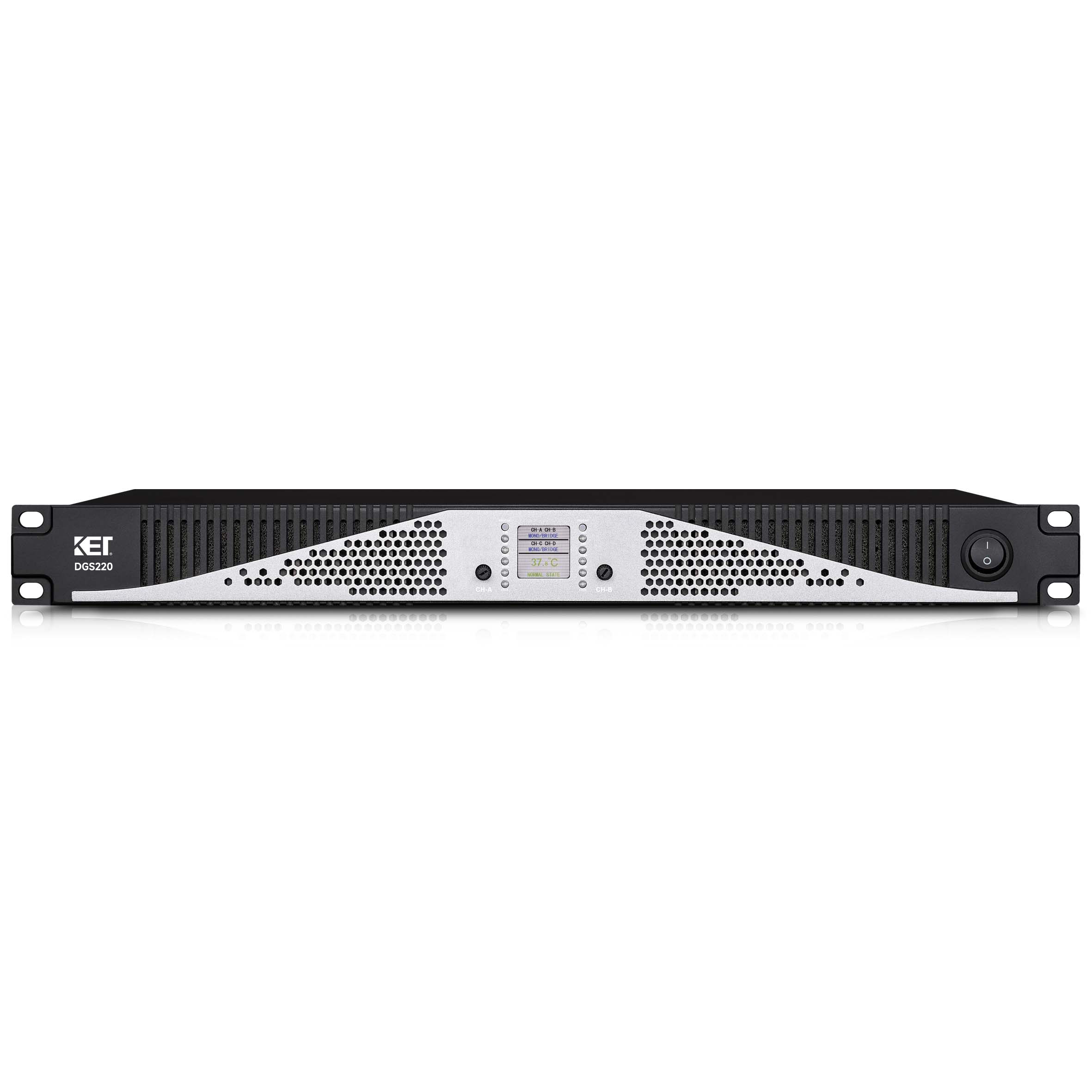

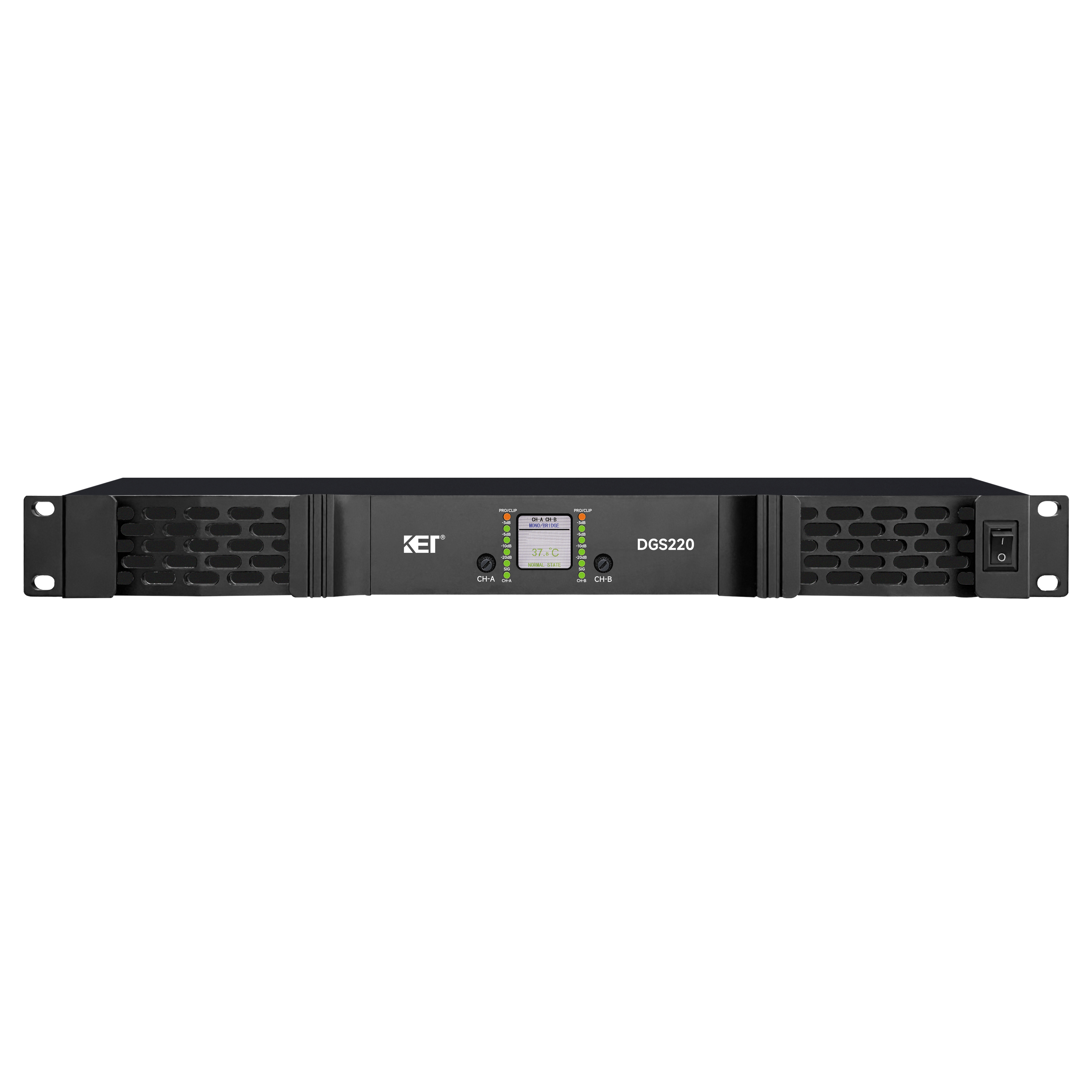

KET DGS series GaN 1U digital class d power amplifier

Model No.:
DGS218
DGS220
DGS410
DGS413
DGS415
Availability:
Quantity:
Inquire Add to Basket

  • DGS218/DGS220/DGS410/DGS413/DGS415

  • KET

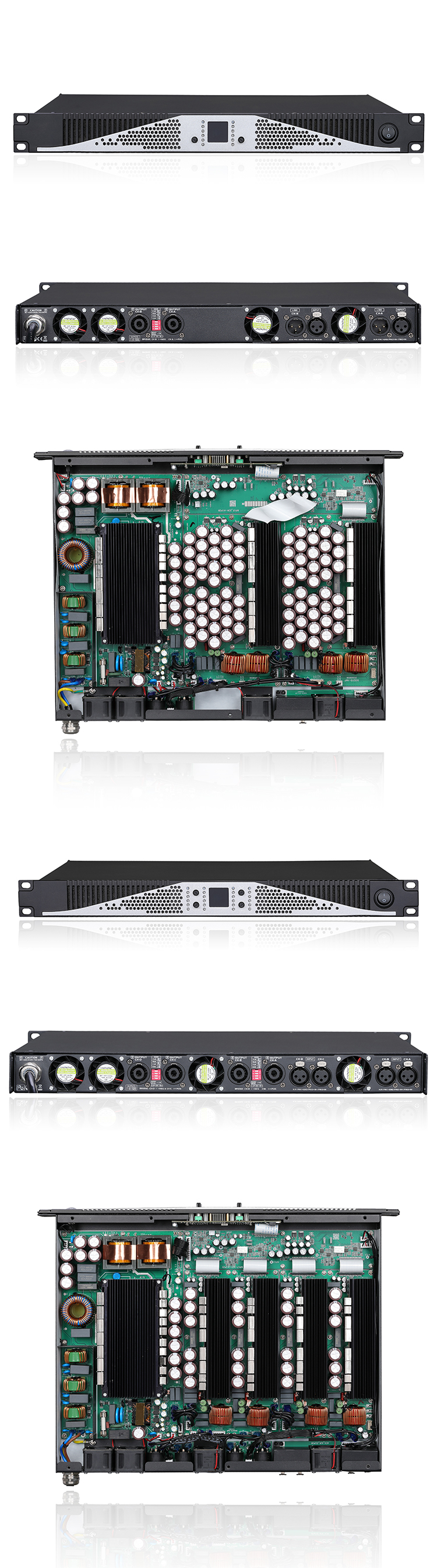

产品展示

Serie Parameters Model No. Power Bridge Power Circuit Size
DGS-1U
4 channels
Short chassis		 Frequency response: 20Hz-20kHz,+0/-1dB
THD+N: <0.5%,20Hz-20kHz
Slew Ratio: 50 V/µs @ 8 Ω
Damping factor: >5000 @ 20-200 Hz
S/N Ratio: >110dB
Gain selection：32dB/35dB/38dB/41dB
GaN--Gallium Nitride
 DGS410 4*1000W(@8Ω)
4*1800W(@4Ω）
4*2300W(@2Ω）		 2*3700W(@8Ω)
2*4600W(@4Ω)		 D 1U
DGS413 4*1300W(@8Ω)
4*2400W(@4Ω）
4*3000W(@2Ω）		 2*4800W(@8Ω)
2*6000W(@4Ω)		 D 1U
DGS415 4*1500W(@8Ω)
4*2700W(@4Ω）
4*3500W(@2Ω）		 2*5500W(@8Ω)
2*7000W(@4Ω)		 D 1U
DGS-1U
2 channels
Short chassis		 Frequency response: 20Hz-20kHz,+0/-1dB
THD+N: <0.5%,20Hz-20kHz
Slew Ratio: 50 V/µs @ 8 Ω
Damping factor: >5000 @ 20-200 Hz
S/N Ratio: >110dB
Gain selection：32dB/35dB/38dB/41dB

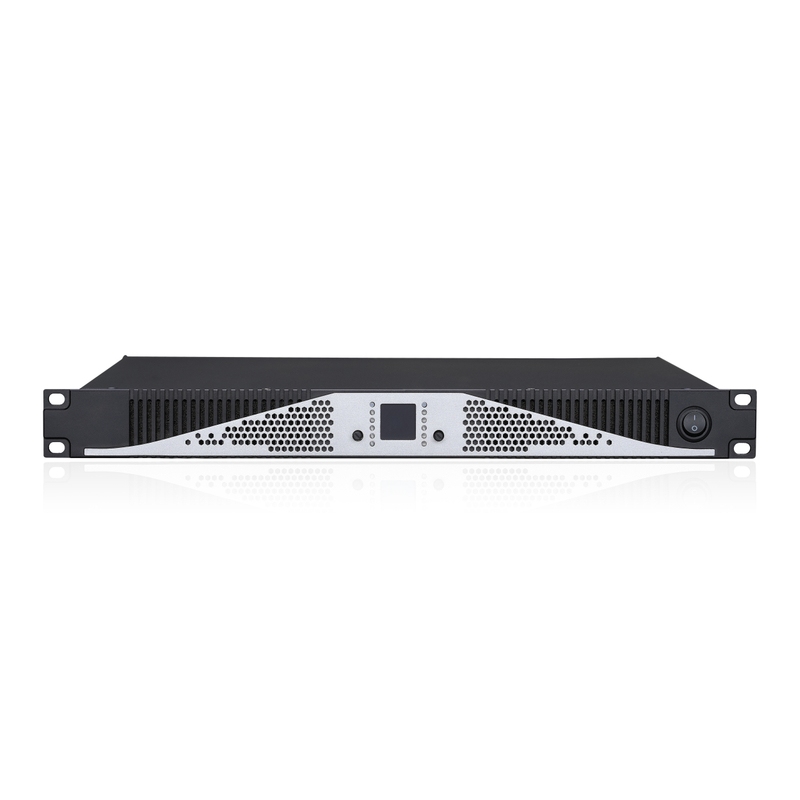

GaN--Gallium Nitride		 DGS218 2*1800W(@8Ω)
2*2925W(@4Ω）
*4000W(@2Ω）		 5400W(@8Ω)
7800W(@4Ω)		 D 1U

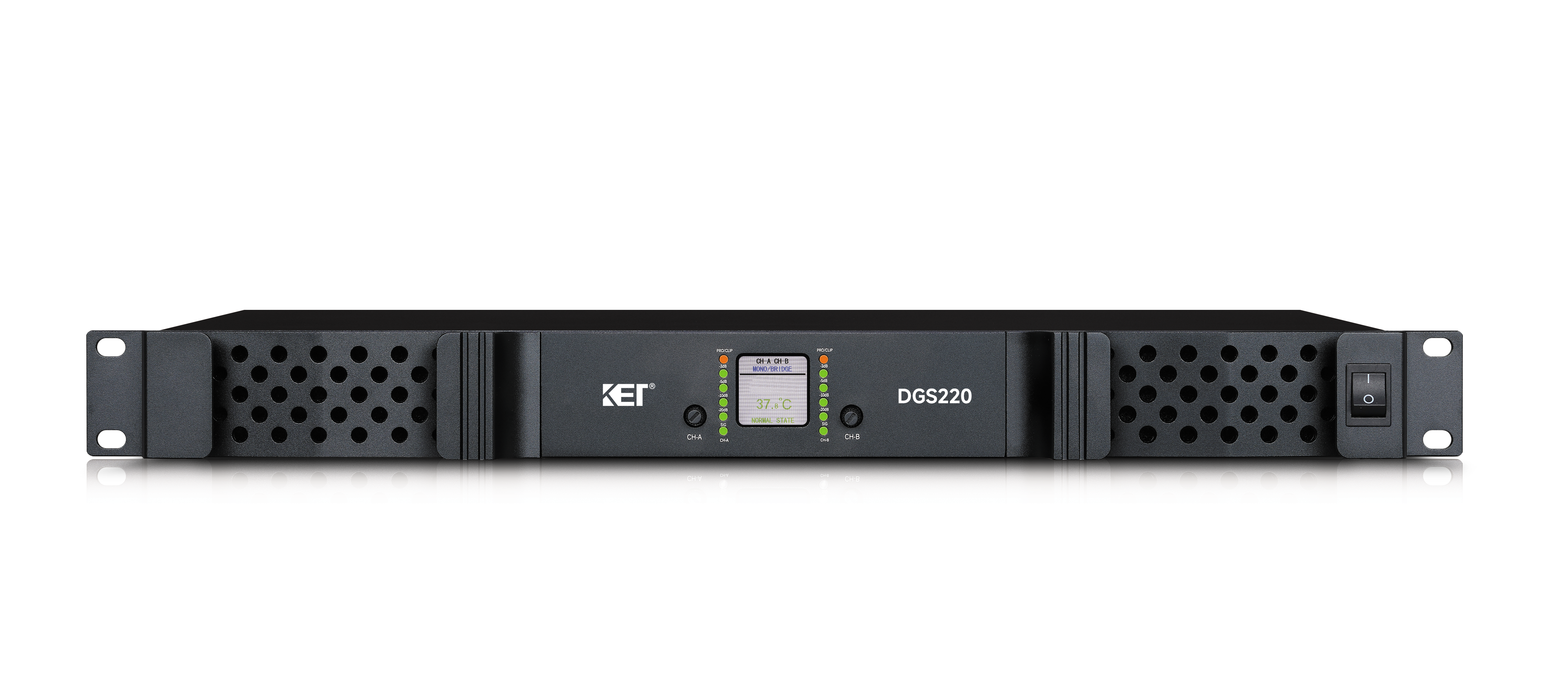

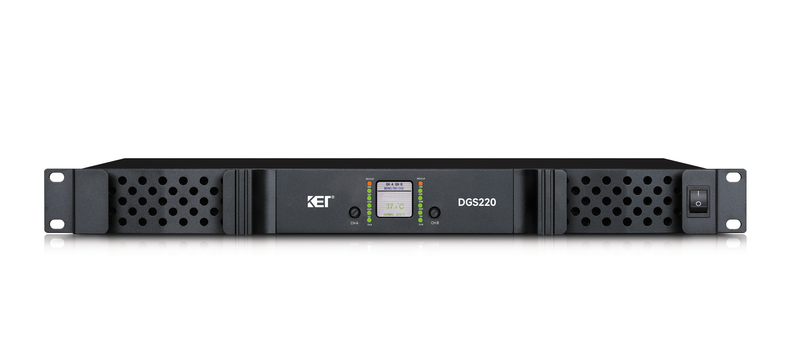

DGS220 2*2000W(@8Ω)
2*3800W(@4Ω）
2*4760W(@2Ω）		 6800W(@8Ω)
9520W(@4Ω)		 D 1U
