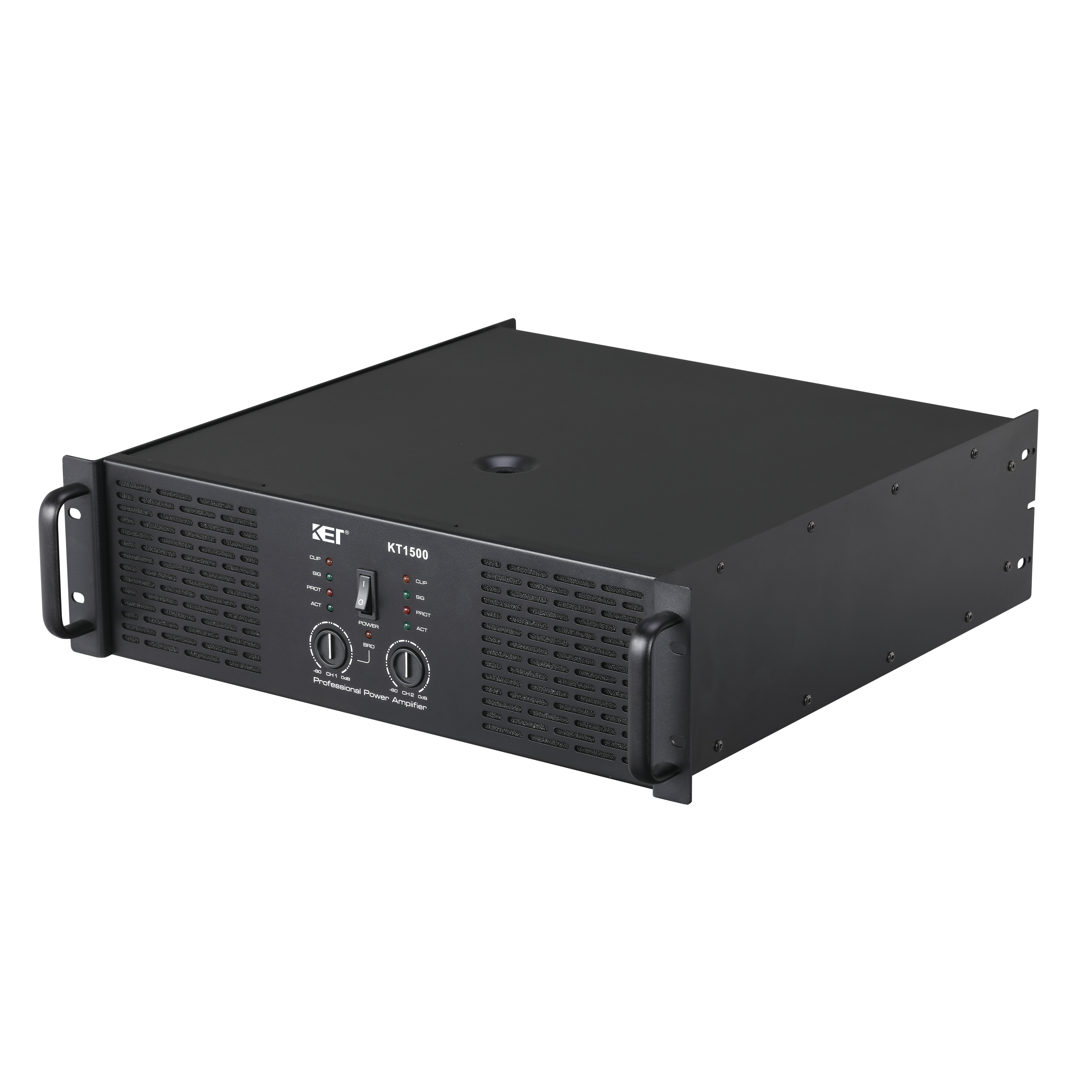

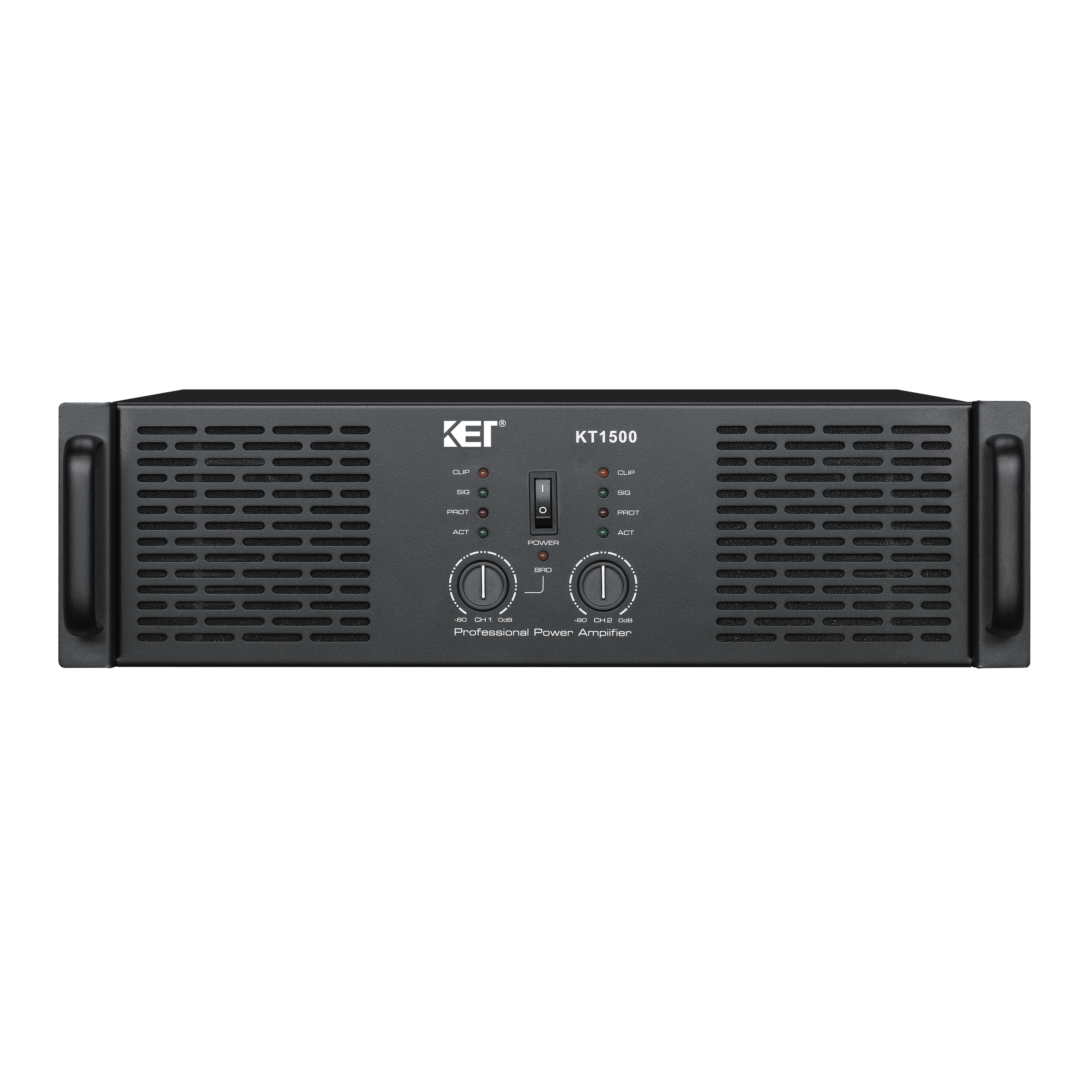

KT1300/KT1500
KET
1. It adopts advanced Class H circuits and three-stage power supply technology, with stronger output
current and stronger output power.

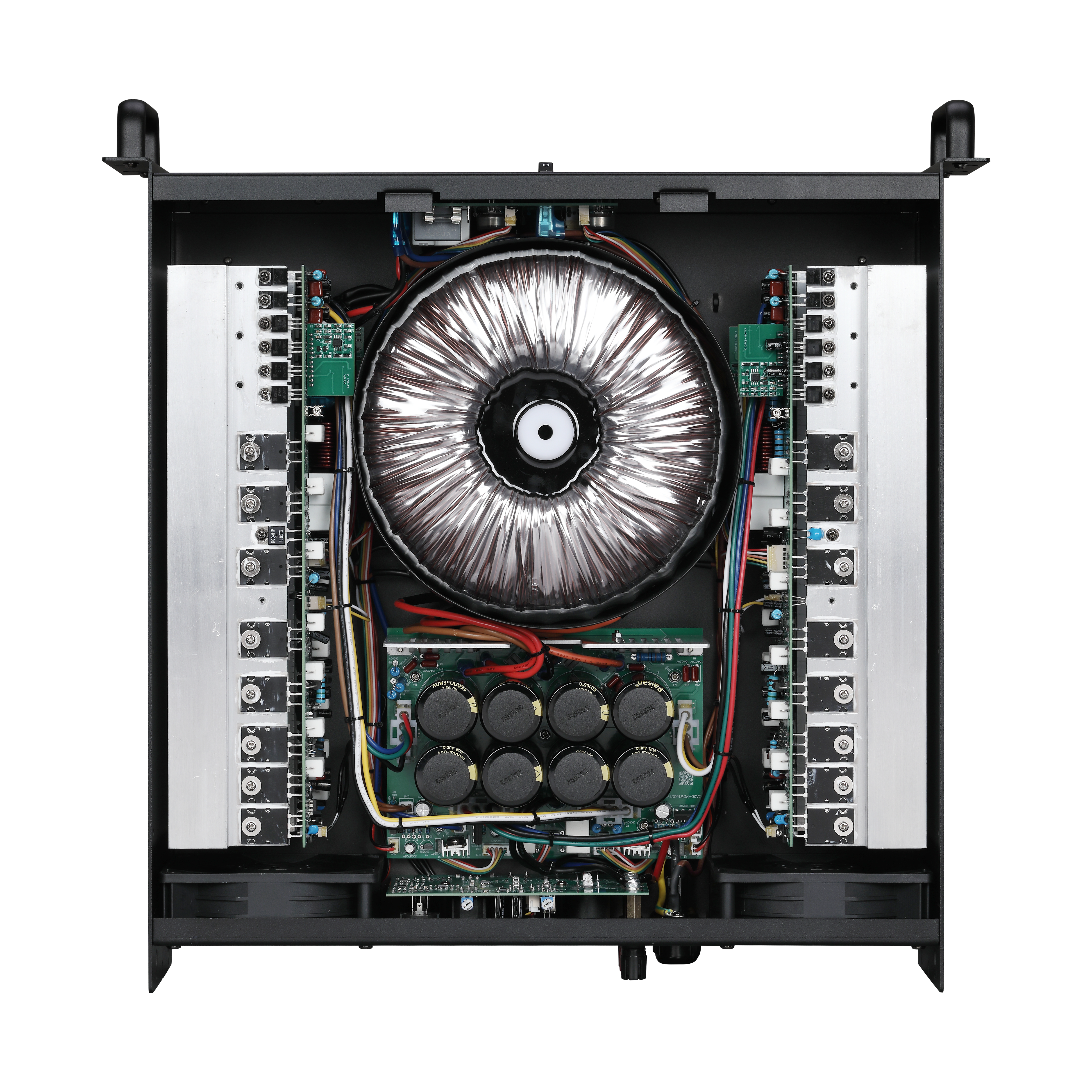

2. Audio-specific ultra large pure aluminum high-quality toroidal transformer and ultra large capacity filter
capacitor provide more than twice rated power and excellent charge and discharge speed.
3. Perfect circuit protection design: power-on buffer, overheating protection, short circuit protection,
pressure limit protection, over current protection, over load protection, output DC protection.
4. With cost-effective, highly reliable,strong power and unique appearance design is favored by the
majority of customers.
5.Applications for indoor and outdoor: KTV, Entertainment club, Stadium, Conference room etc.
| MODEL NO. | KT1300 | KT1500 |
| 8Ω Stereo Output Power | 1300W | 1500W |
4Ω Stereo Output Power | 2000W | 2400W |
2Ω Stereo Output Power | 2700W | 3400W |
8Ω Bridge Output Power | 4000W | 5000W |
4Ω Bridge Output Power | 5400W | 6800W |
Output Circuit | H | |
Height | 3U | |
Frequency response | 20Hz-20kHz (+0/-0.5dB) | |
THD+N | <0.03% | |
Slew Ratio | 44V/µs | |
Damping factor | 300 | |
S/N Ratio | >95dB | |
Damping Factor | >500@10-200Hz | |
Input sensitivity | 0.775V, 1V, 1.4V | |
Input impedance | 20KΩ/ 10KΩ | |
Crosstalk | >70dB | |
Input connector | Male XLR, Female XLR | |
Output connector | Binding posts, Speakon | |
Cooling | Variable Speed Fans, Front-To-Rear Airflow | |
