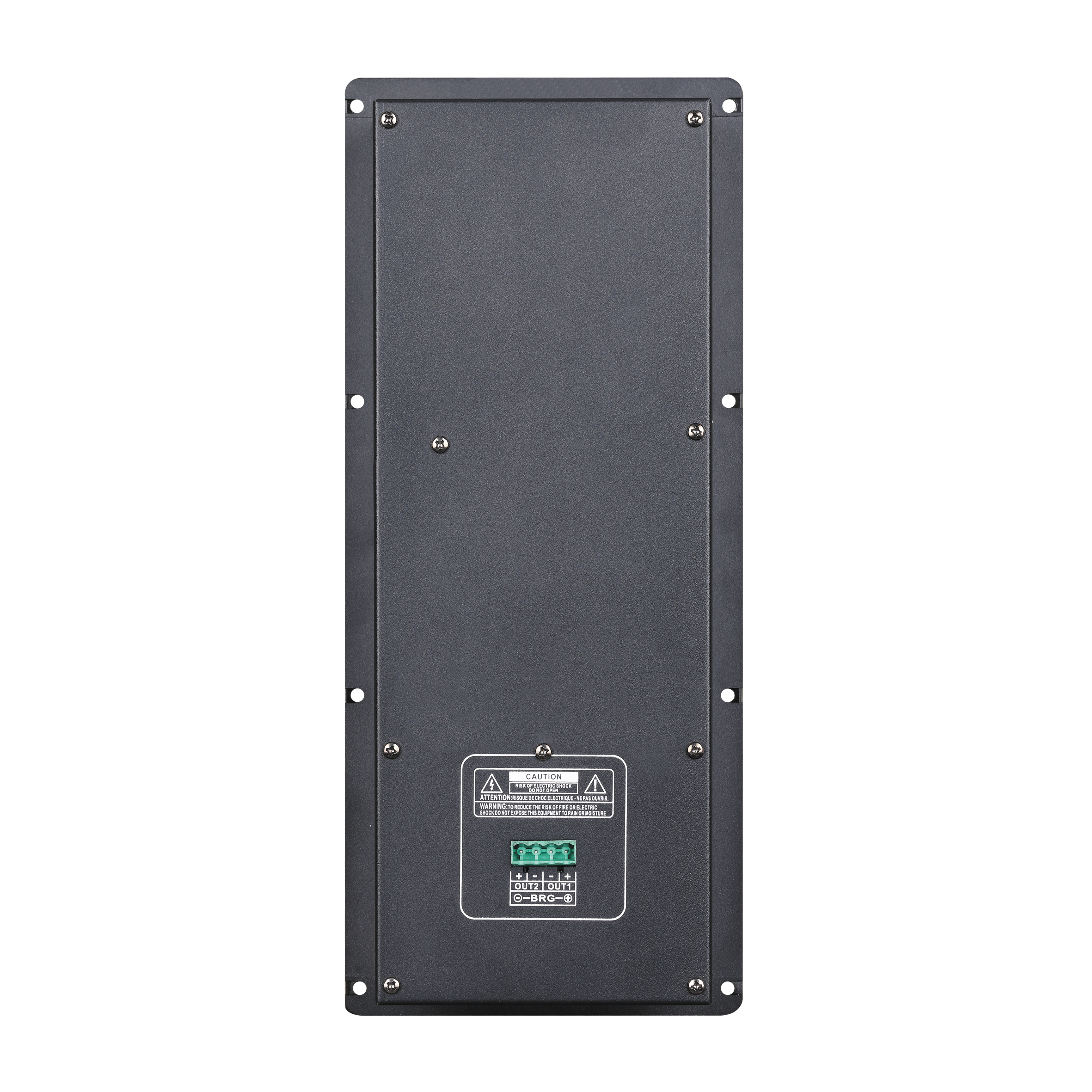

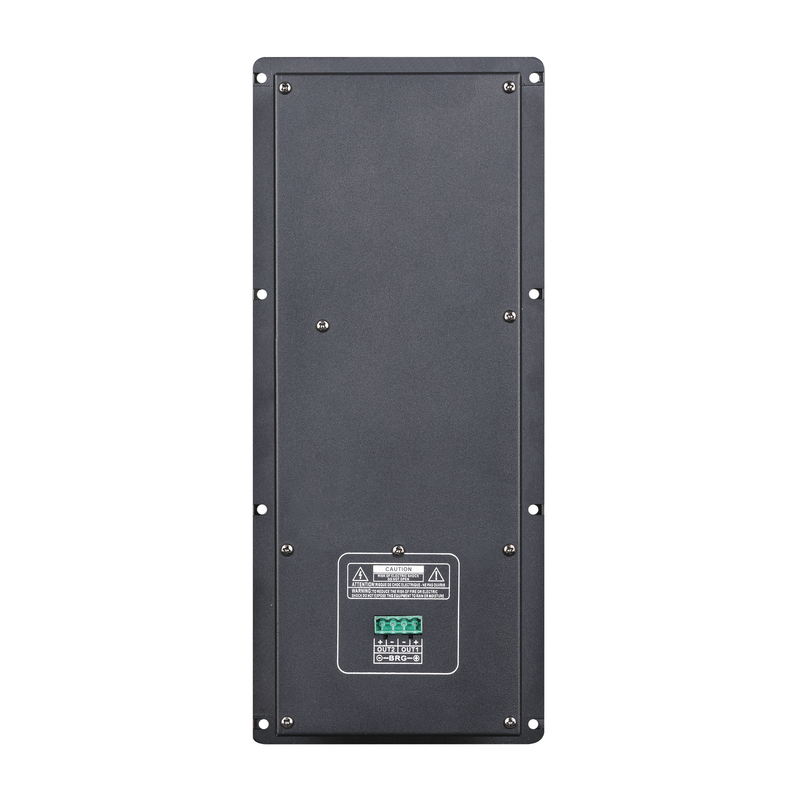

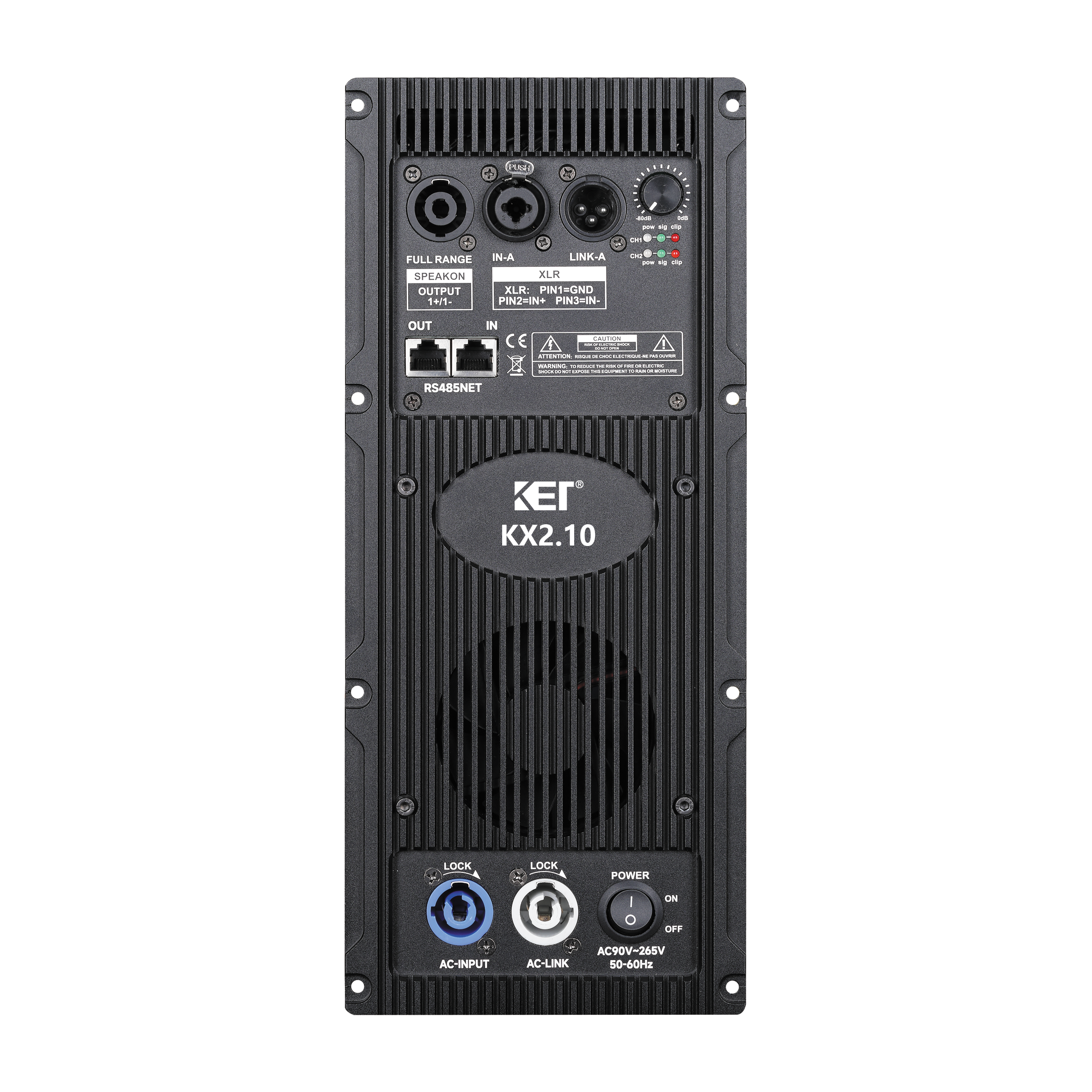

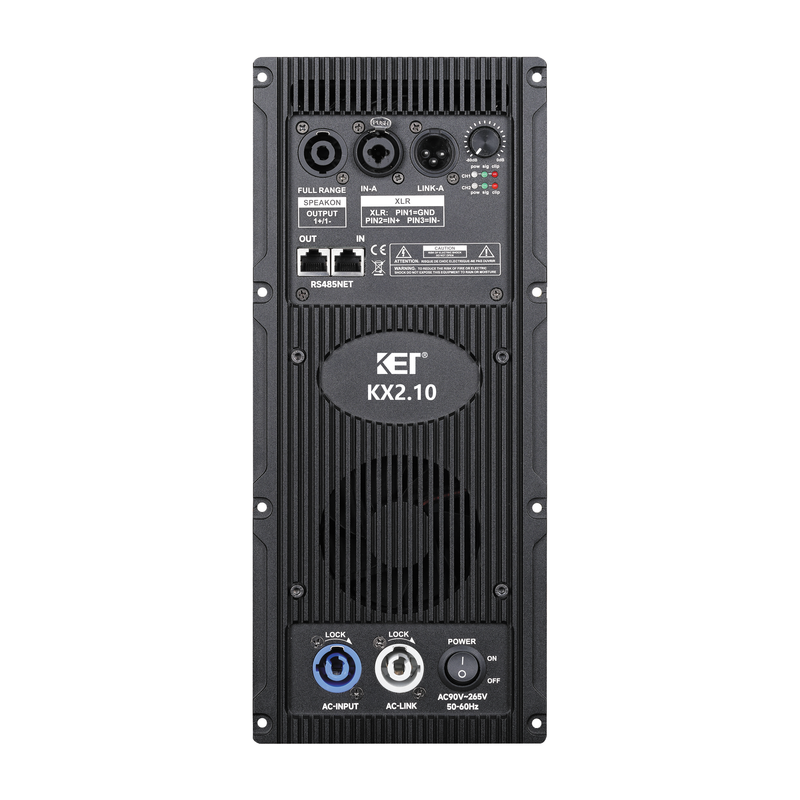

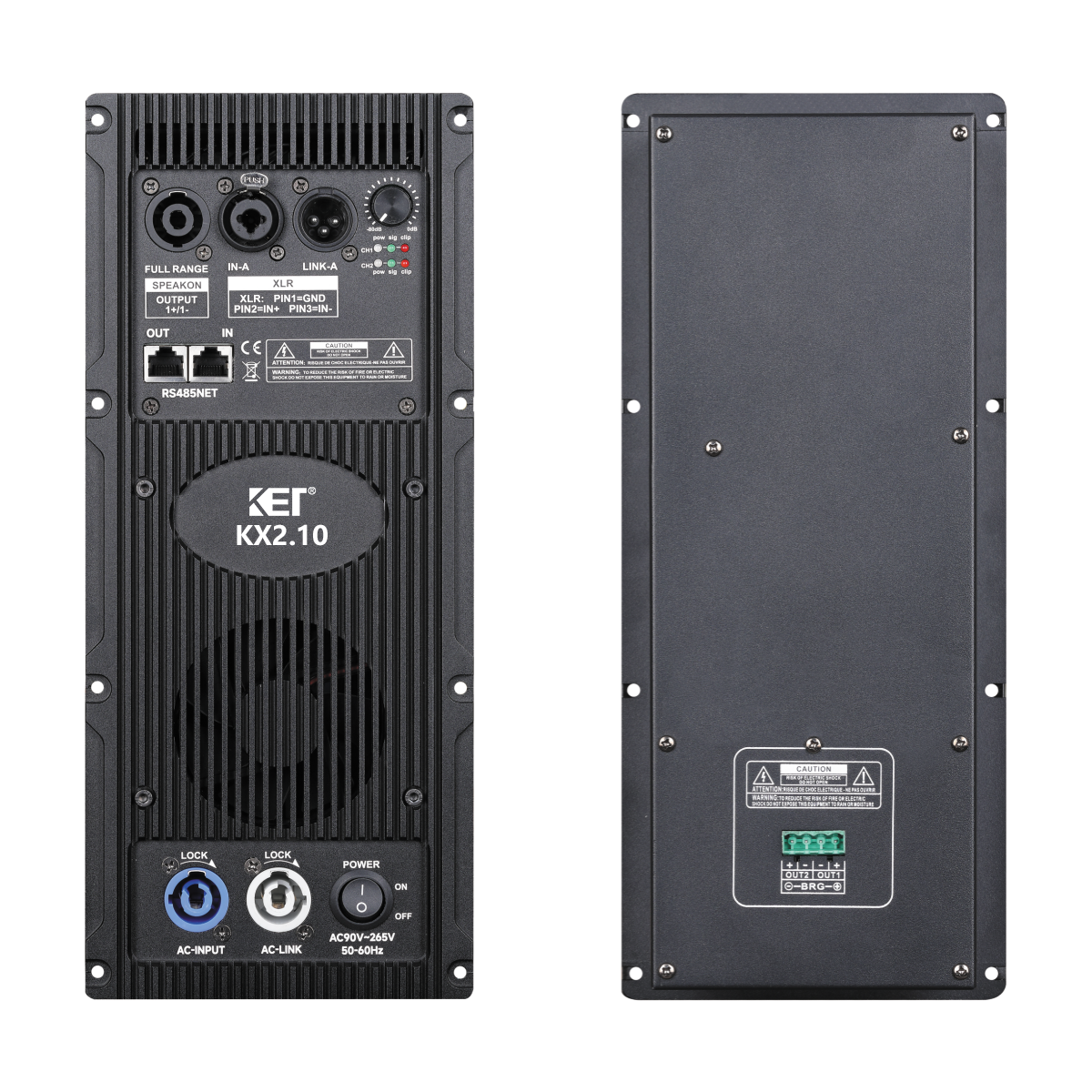

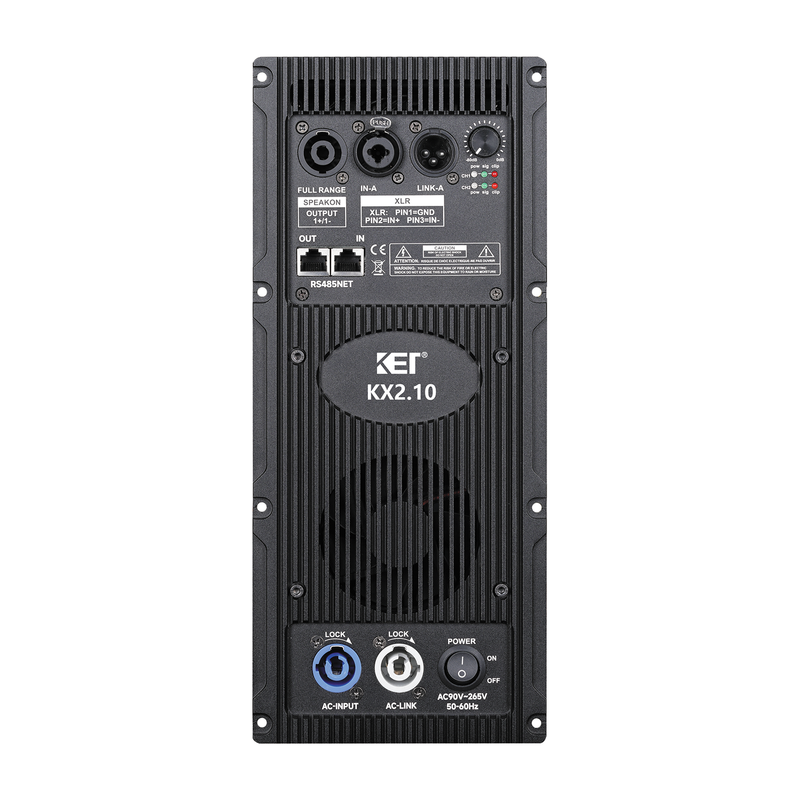

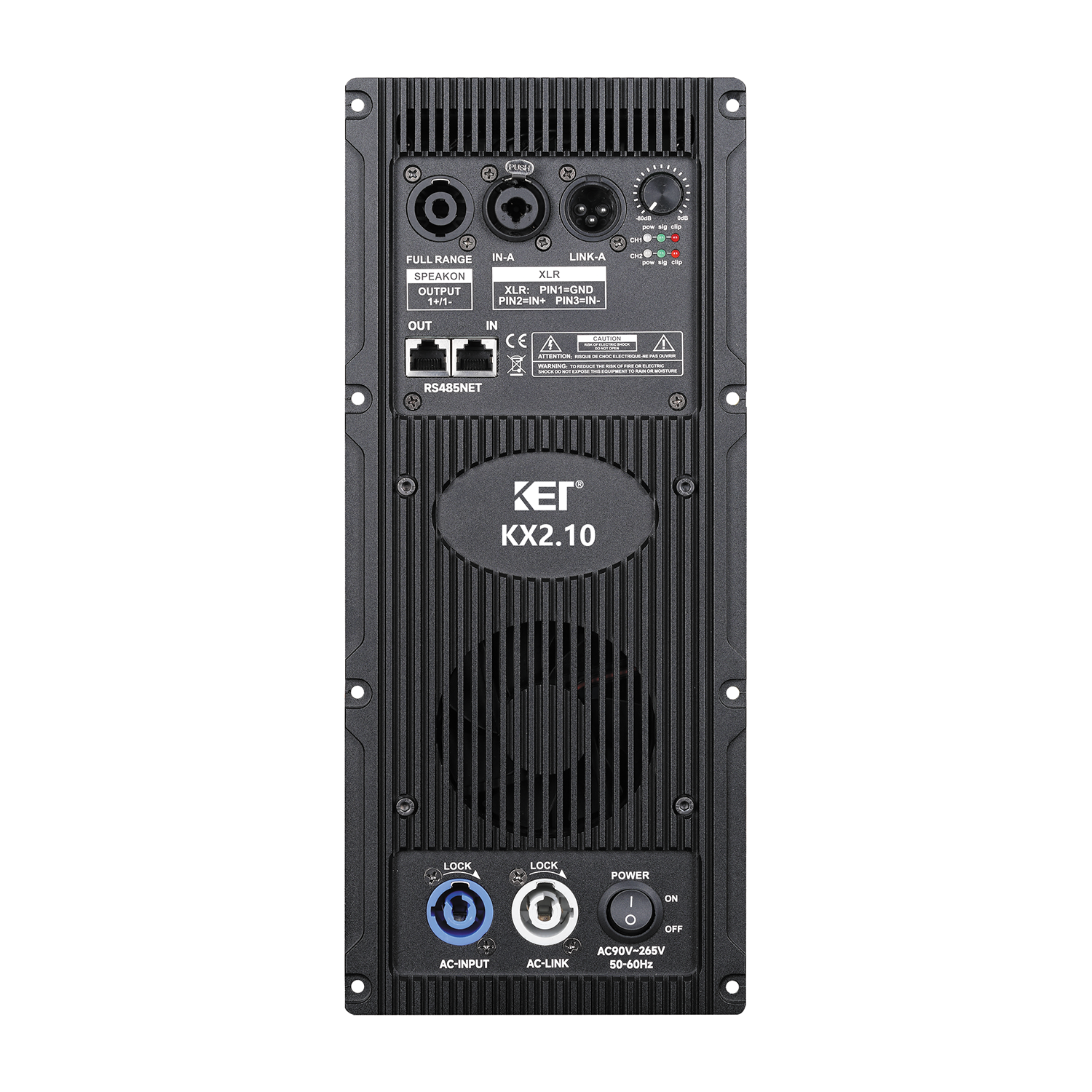

KX2.6/KX2.8/KX2.10
KET
AC110V~AC250V~50/60Hz1.KX series Class D power amplifier module
2.DSP intelligent adjustment, FIR phase calibration,
3.PFC Universal Voltage Stabilization
4.Optional with or without DSP
5.Capable of stable driving at 4 ohms
| MODEL NO. | KX2.6 | KX2.8 | KX2.10 |
| 8Ω Stereo Output Power | 600W | 800W | 1000W |
4Ω Stereo Output Power | 1100W | 1400W | 1600W |
Channels | 2 | ||
Output Circuit | SMPS+CLASS D | ||
Frequency response | 20Hz-20KHz ±0.5dB | ||
Input sensitivity | 1.4V | ||
THD+N | <0.05% | ||
Slew rate | >20V/us (RMS,1KHZ) | ||
Damping Factor | ＞200 (RMS,1KHZ) | ||
Dynamic Range | ≥95dB | ||
S/N Ratio | ≥95dB (A-weighted, RMS) | ||
Voltage gain | 34dB | ||
Input impedance | Balance: 20KΩ, unbalanced: 10KΩ | ||
Power supply | AC110V~AC250V~50/60Hz | ||
| DSP Function | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, FIR | ||
| DSP Control | RS-485 | ||
| Dimension | 332mmX141.5mmX95mm | ||
