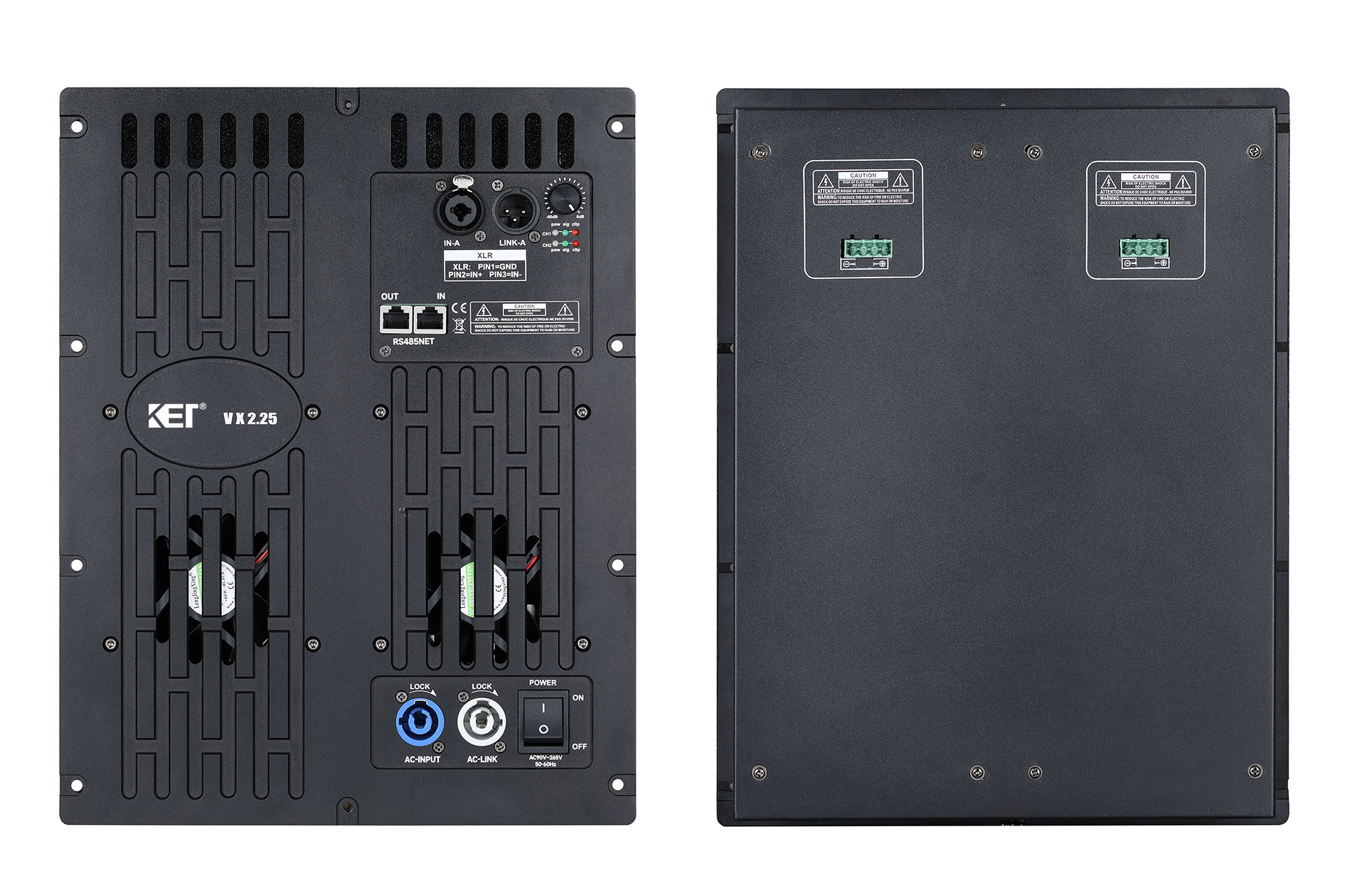

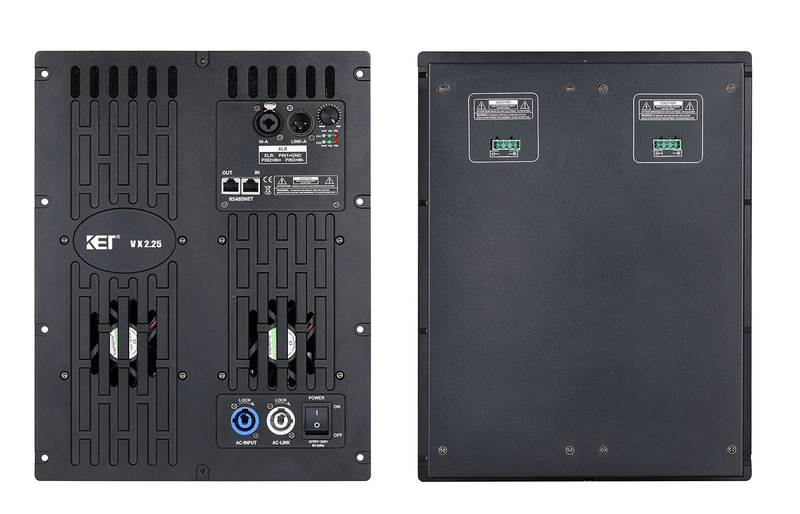

VX1.23/VX1.25/VX2.23/VX2.25
KET
1. Equipped with advanced DSP chips, it can digitize audio signals at an extremely high speed.
Precise FIR filtering technology is adopted to precisely adjust the specific frequency
components of the input audio signals.
2. By adopting advanced heat dissipation design and circuit protection mechanism, the reliability
and stability of the system have been further enhanced, and the service life of the equipment
has been prolonged.
3. Every audio frequency band can be accurately restored, preserving the plenty details and
dynamic range of the original audio signal in furthest, providing users with an immersive
auditory experience.
| MODEL NO. | VX1.23 | VX1.25 | VX2.23 | VX2.25 |
| 8Ω Stereo Output Power | 2300W | 2500W | 2300W | 2500W |
4Ω Stereo Output Power | 2500W | 3500W | 2500W | 3500W |
Channels | 1 | 1 | 2 | 2 |
Output Circuit | SMPS+CLASS D | |||
Frequency response | 20Hz-20KHz ±0.5dB | |||
Input sensitivity | 1.4V | |||
THD+N | <0.05% | |||
Slew rate | >20V/us (RMS,1KHZ) | |||
Damping Factor | ＞200 (RMS,1KHZ) | |||
Dynamic Range | ≥95dB | |||
S/N Ratio | ≥95dB (A-weighted, RMS) | |||
Voltage gain | 34dB | |||
Input impedance | Balance: 20KΩ, unbalanced: 10KΩ | |||
Power supply | AC90V~AC265V~50/60Hz | |||
DSP Function | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, FIR | |||
DSP Control | RS-485 | |||
