| 产品型号 | DG418 | DG422 | DG430 | DG435 |
| 8Ω 立体声输出功率 | 1800W | 2200W | 3000W | 3500W |
| 4Ω 立体声输出功率 | 2925W | 3700W | 5000W | 5600W |
| 2Ω 立体声输出功率 | 4000W | 5200W | 6500W | 7280W |
| 8Ω桥接 | 5400W | 6600W | 10000W | 10500W |
| 4Ω桥接 | 7800W | 9800W | 13000W | 14560W |
| 输出线路 | D | |||
| 高度 | 1U | |||
| 频响 | 20Hz-20kHz,+0/-1dB | |||
| 总谐波失真 | <0.5%,20Hz-20kHz | |||
| 互调失真 | <0.05% | |||
| 转换速率 | 50 V/µs @ 8 Ω | |||
| 阻尼系数 | >5000 @ 20-200 Hz | |||
| 信噪比 | >110dB | |||
| 增益选择 | 32dB/35dB/38DB/41dB | |||
| 输入接口 | XLR | |||
| 输出接口 | Speakon | |||

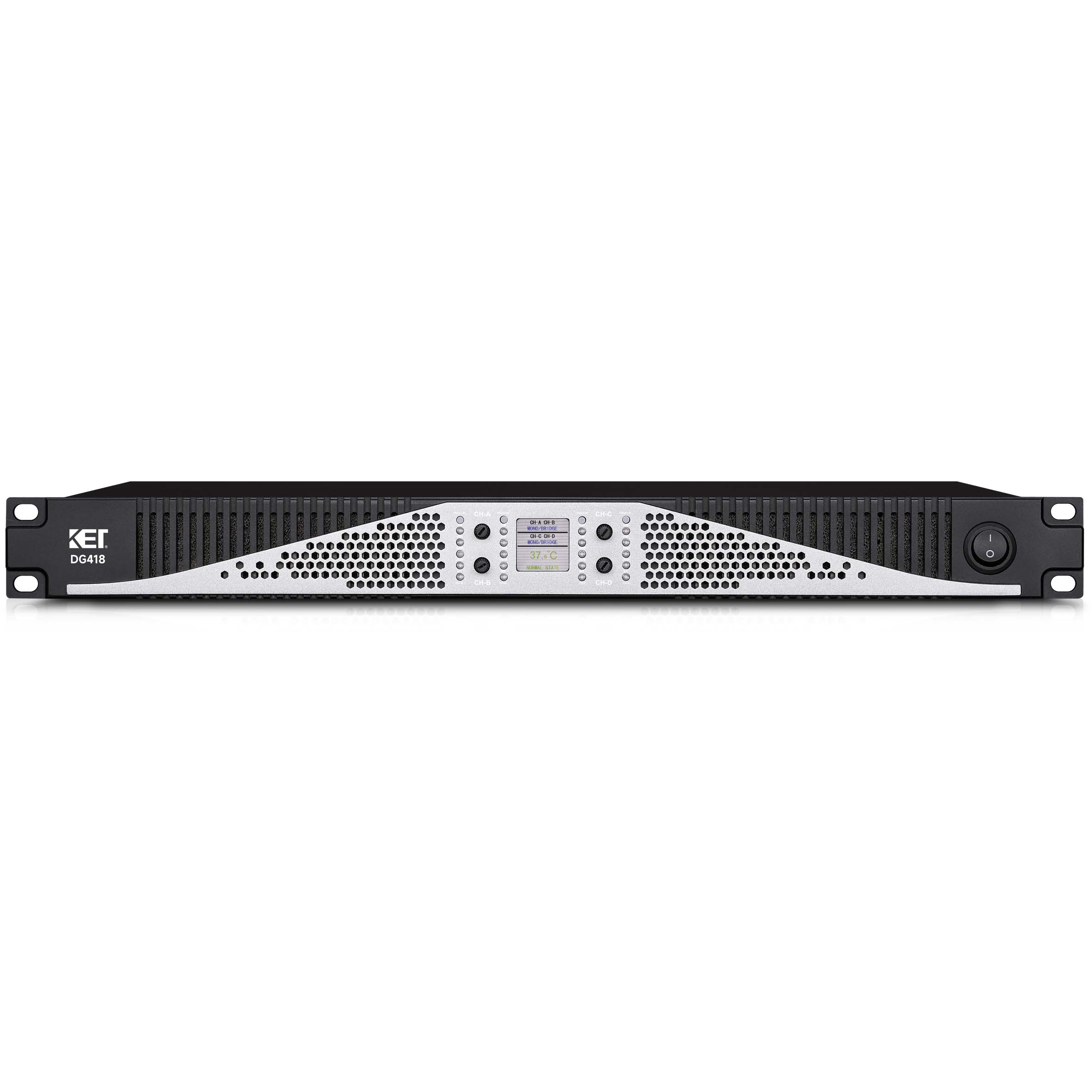

| 前板控制 | AC Power Switch, LED(Pro/Clip), 4 channels volume | |||

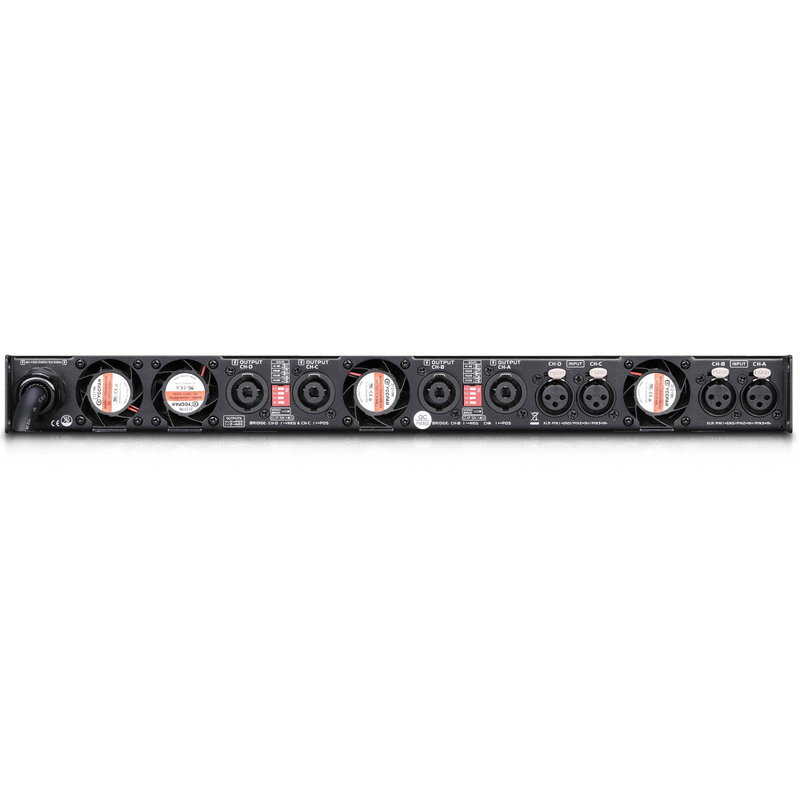

| 后板控制 | Input Mode Switch: MONO Bridge, CLIP ON, GAIN | |||
| 机身尺寸 | 483mmx45mmx450mm | |||
