| 产品型号 | DG222 | DG225 | DG230 | DG235 | DG242 |
| 8Ω 立体声输出功率 | 2200W | 2500W | 3000W | 3500W | 4200W |
| 4Ω 立体声输出功率 | 4180W | 4400W | 5100W | 6500W | 7800W |
| 2Ω 立体声输出功率 | 5225W | 5500W | 7140W | 7500W | 8500W |
| 8Ω桥接 | 7600W | 8800W | 10200W | 13000W | 15600W |
| 4Ω桥接s | 10000W | 11000W | 14280W | 15000W | 17000W |
| 输出线路 | D | ||||
| 高度 | 1U | ||||
| 频响 | 20Hz-20kHz,+0/-1dB | ||||
| 总谐波失真 | <0.5%,20Hz-20kHz | ||||
| 互调失真 | <0.05% | ||||
| 转换速率 | 50 V/µs @ 8 Ω | ||||
| 阻尼系数 | >5000 @ 20-200 Hz | ||||
| 信噪比 | >110dB | ||||
| 增益选择 | 32dB/35dB/38DB/41dB | ||||
| 输入接口 | XLR | ||||
| 输出接口 | Speakon | ||||
| 前板控制 | AC Power Switch, LED(Pro/Clip), 2 channels volume | ||||

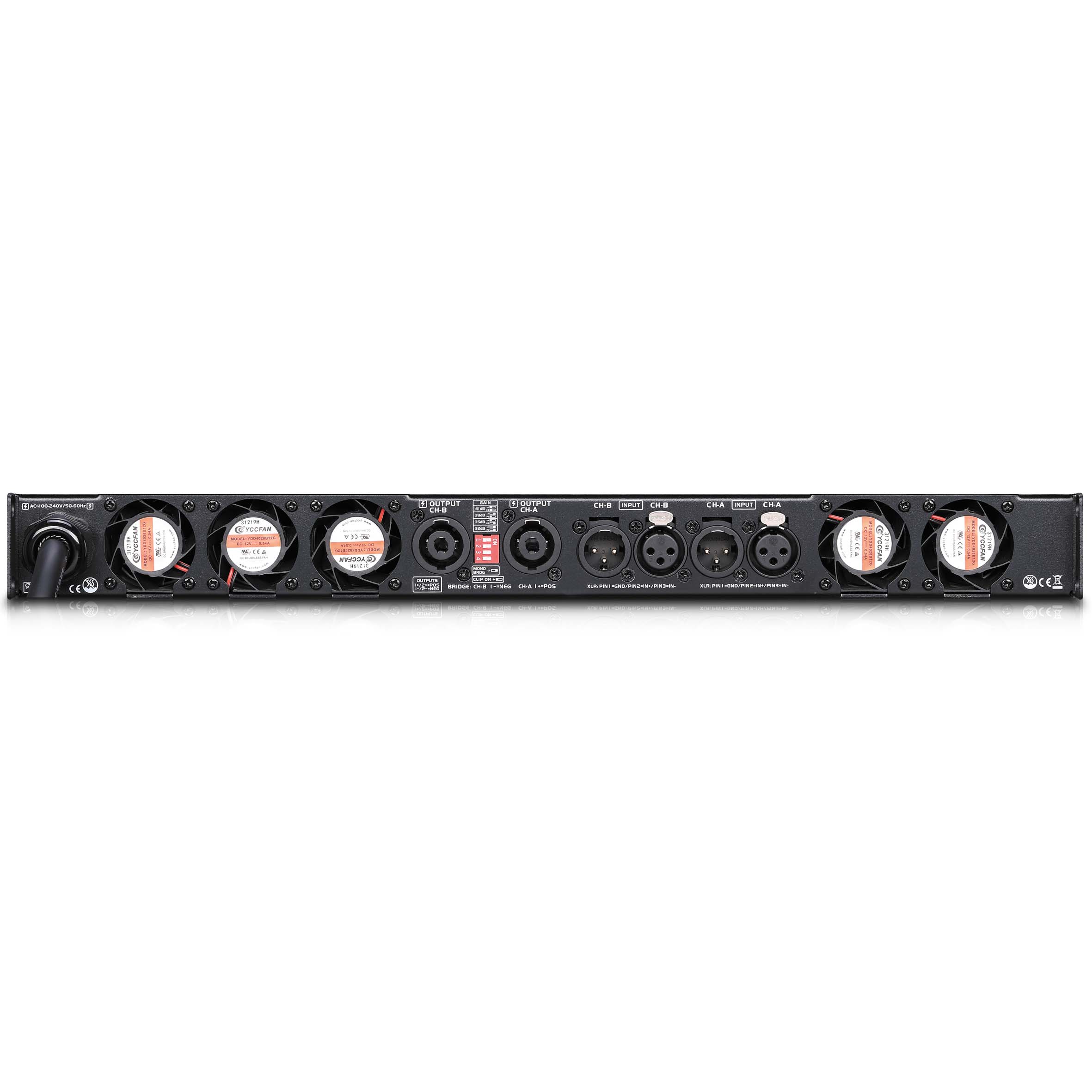

| 后板控制 | Input Mode Switch: MONO Bridge, CLIP ON, GAIN | ||||
| 机身尺寸 | 483mmx45mmx450mm | ||||
